CSE-SGMR-152-SGMR
ActiveTE Connectivity Linx

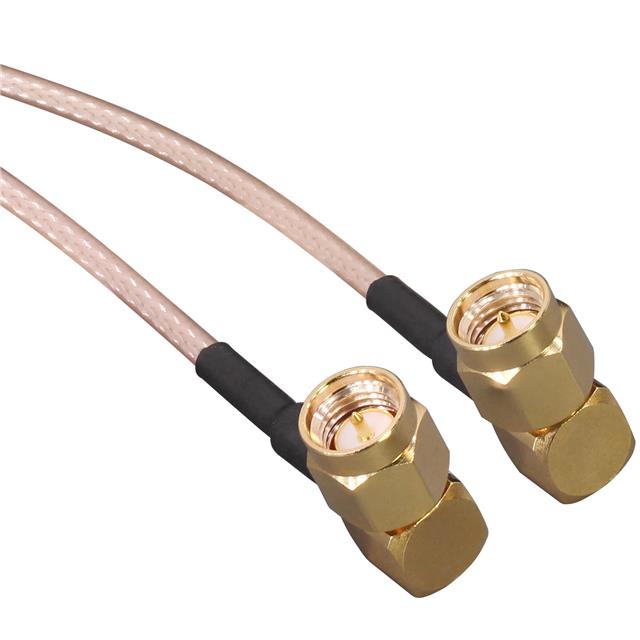

CBL ASSY SMA PLUG TO PLUG 6"
Deep-Dive with AI
Search across all available documentation for this part.
CSE-SGMR-152-SGMR
ActiveTE Connectivity Linx
CBL ASSY SMA PLUG TO PLUG 6"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CSE-SGMR-152-SGMR |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Frequency - Max [Max] | 3 GHz |
| Length | 152.4 mm |
| Length | 6 in |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 19.88 | |
| 10 | $ 17.89 | |||
| 25 | $ 17.10 | |||
| 100 | $ 15.11 | |||
| 250 | $ 14.11 | |||
| 500 | $ 13.32 | |||
Description
General part information
CSE-SGMR Series
Cable Assembly Coaxial SMA to SMA RG-316 6.000" (152.40mm)
Documents
Technical documentation and resources
No documents available
