2095-600-CLF

Active

Bourns Inc.

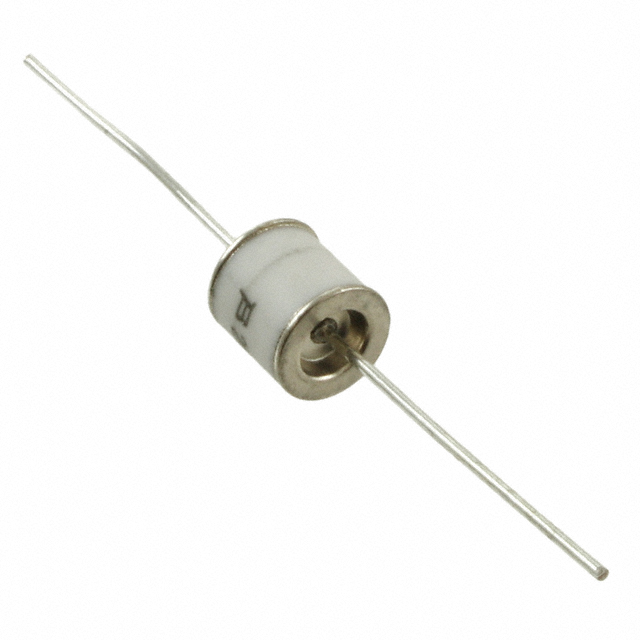

GAS DISCHARGE TUBES 6000VDC 3KADC 1.5PF AXIAL THRU-HOLE

Search across all available documentation for this part.

Active

Bourns Inc.

GAS DISCHARGE TUBES 6000VDC 3KADC 1.5PF AXIAL THRU-HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	2095-600-CLF

Fail Short	False
Impulse Discharge Current (8/20µs)	5000 A
Impulse Discharge Current (8/20µs)	5 kA
Mounting Type	Through Hole
Number of Poles	2
Package / Case	Axial Cylinder
Tolerance	20 %
Voltage - DC Spark Over (Nom)	6000 V

Part	Voltage - DC Spark Over (Nom)	Package / Case	Mounting Type	Number of Poles	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Tolerance
Bourns Inc. 2095-100-BT1LF	1000 V	Axial Cylinder	Through Hole	2	5000 A	5 kA	20 %
Bourns Inc. 2095-300-BT1LF	3000 V	Axial Cylinder	Through Hole	2	5000 A	5 kA	20 %
Bourns Inc. 2095-350-BT1LF	3.5 kV	Axial Cylinder	Through Hole	2	5000 A	5 kA	20 %
Bourns Inc. 2095-450-BT1LF	4500 V	Axial Cylinder	Through Hole	2	5000 A	5 kA	20 %
Bourns Inc. 2095-300-BLF	3000 V	Axial Cylinder	Through Hole	2	5000 A	5 kA	20 %
Bourns Inc. 2095-270-BT1LF	2700 V	Axial Cylinder	Through Hole	2	5000 A	5 kA	20 %
Bourns Inc. 2095-140-BLF	1400 V	Axial Cylinder	Through Hole	2	5000 A	5 kA	20 %
Bourns Inc. 2095-600-CT1LF	6000 V	Axial Cylinder	Through Hole	2	5000 A	5 kA	20 %
Bourns Inc. 2095-500-CLF	5000 V	Axial Cylinder	Through Hole	2	5000 A	5 kA	20 %
Bourns Inc. 2095-600-CLF	6000 V	Axial Cylinder	Through Hole	2	5000 A	5 kA	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Gas Discharge Tube 6000 V 5000A (5kA) ±20% 2 Pole Through Hole
