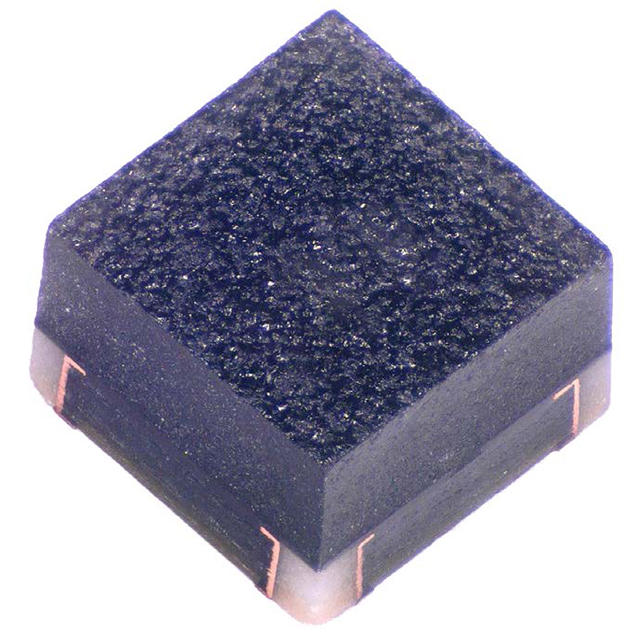

UHD111A-FKA-C3K23E1L3VG5ZB3Z3

Active

Cree LED

LED RGB 0404 SMD

Search across all available documentation for this part.

Active

Cree LED

LED RGB 0404 SMD

Technical Specifications

Parameters and characteristics for this part

Specification	UHD111A-FKA-C3K23E1L3VG5ZB3Z3

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	3 mA
Current - Test [custom]	3 mA
Current - Test [custom]	5 mA
Height (Max) [Max] [z]	0.7 mm
Lens Size	1 mm
Lens Style	Square with Flat Top
Millicandela Rating [custom]	12 mcd
Millicandela Rating [custom]	35 mcd
Millicandela Rating [custom]	60 mcd
Mounting Type	Surface Mount
Package / Case	0404
Size / Dimension [x]	1 mm
Size / Dimension [y]	1 mm
Supplier Device Package	0404
Voltage - Forward (Vf) (Typ) [custom]	2.7 V
Voltage - Forward (Vf) (Typ) [custom]	2 V
Voltage - Forward (Vf) (Typ) [custom]	2.7 V
Wavelength - Dominant	467 nm, 526 nm, 620 nm

Part	Color	Mounting Type	Wavelength - Dominant	Lens Style	Configuration	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Height (Max) [Max] [z]	Lens Size	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Supplier Device Package
Cree LED UHD111A-FKA-C3K23E1L3VG5ZB3Z3	Blue Green Red	Surface Mount	467 nm 526 nm 620 nm	Square with Flat Top	Common Anode	0404	1 mm	1 mm	3 mA	3 mA	5 mA	0.7 mm	1 mm	2.7 V	2 V	2.7 V	12 mcd	35 mcd	60 mcd	0404

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 620nm Red, 526nm Green, 467nm Blue LED Indication - Discrete 2V Red, 2.7V Green, 2.7V Blue 0404 (1010 Metric)
