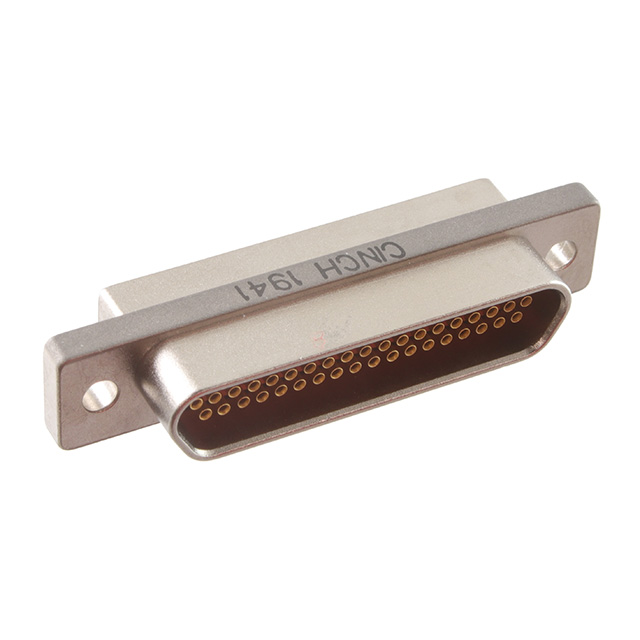

DCCM37SSBN

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D RCPT 37POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DCCM37SSBN

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D RCPT 37POS PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCCM37SSBN

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Diallyl Phthalate (DAP), Glass Filled
Features	Shielded
Material Flammability Rating	UL94 V-0
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Aluminum Alloy, Electroless
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05

DCCM37 Series

Part	Termination	Connector Style	Dielectric Material	Flange Feature	Connector Type	Shell Material, Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Material Flammability Rating	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Type	Current Rating (Amps)	Features	Length [x]	Length [x]	Color	Type	1st Connector	2nd Connector	Backset Spacing	Backset Spacing
Cinch Connectivity Solutions Trompeter DCCM37SBSP	Solder	D-Type Micro-D	Diallyl Phthalate (DAP) Glass Filled	Female Screwlock Mating Side	Receptacle Female Sockets	Aluminum Alloy Yellow Chromate Plated Cadmium	0.043	0.05	37	Gold	135 °C	-55 °C	Copper Alloy	UL94 V-0	2	50 µin	1.27 µm	Through Hole	Signal	3 A	Shielded
Cinch Connectivity Solutions Trompeter DCCM37S6E5-36.0BN									37	Gold						50 µin	1.27 µm					3 ft	914.4 mm	Individual Multiple	D-Type Micro-D	Female Sockets Receptacle	Individual Wire Leads
Cinch Connectivity Solutions Trompeter DCCM37PSB		D-Type Micro-D	Diallyl Phthalate (DAP) Glass Filled		Male Pins Plug	Aluminum Alloy Yellow Chromate Plated Cadmium	0.043	0.05	37	Gold	135 °C	-55 °C	Copper Alloy	UL94 V-0	2	50 µin	1.27 µm		Signal	3 A	Shielded
Cinch Connectivity Solutions Trompeter DCCM37S6E5-18.0B									37	Gold						50 µin	1.27 µm					1.5 ft	457.2 mm	Individual Multiple	D-Type Micro-D	Female Sockets Receptacle	Individual Wire Leads
Cinch Connectivity Solutions Trompeter DCCM37PSBN		D-Type Micro-D	Diallyl Phthalate (DAP) Glass Filled		Male Pins Plug	Aluminum Alloy Electroless Nickel Plated	0.043	0.05	37	Gold	135 °C	-55 °C	Copper Alloy	UL94 V-0	2	50 µin	1.27 µm		Signal	3 A	Shielded
Cinch Connectivity Solutions Trompeter DCCM37SBSPN	Solder	D-Type Micro-D	Diallyl Phthalate (DAP) Glass Filled	Female Screwlock Mating Side	Receptacle Female Sockets	Aluminum Alloy Electroless Nickel Plated	0.043	0.05	37	Gold	135 °C	-55 °C	Copper Alloy	UL94 V-0	2	50 µin	1.27 µm	Through Hole	Signal	3 A	Shielded
Cinch Connectivity Solutions Trompeter DCCM37S6E5-18.0BN									37	Gold						50 µin	1.27 µm					1.5 ft	457.2 mm	Individual Multiple	D-Type Micro-D	Female Sockets Receptacle	Individual Wire Leads
Cinch Connectivity Solutions Trompeter DCCM37P6E5-18.0BN									37	Gold						50 µin	1.27 µm					1.5 ft	457.2 mm	Individual Multiple	D-Type Micro-D	Plug Male Pins	Individual Wire Leads
Cinch Connectivity Solutions Trompeter DCCM37SSBN		D-Type Micro-D	Diallyl Phthalate (DAP) Glass Filled		Receptacle Female Sockets	Aluminum Alloy Electroless Nickel Plated	0.043	0.05	37	Gold	135 °C	-55 °C	Copper Alloy	UL94 V-0	2	50 µin	1.27 µm		Signal	3 A	Shielded
Cinch Connectivity Solutions Trompeter DCCM37PCBRPN	Solder	D-Type Micro-D	Diallyl Phthalate (DAP) Glass Filled	Female Screwlock Mating Side	Male Pins Plug	Aluminum Alloy Electroless Nickel Plated	0.043	0.05	37	Gold	135 °C	-55 °C	Copper Alloy	UL94 V-0	2	50 µin	1.27 µm	Through Hole Right Angle	Signal	3 A	Shielded							3.3 mm	0.13 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 162.18
		10	$ 126.67
		25	$ 115.45
		50	$ 107.90

Description

General part information

DCCM37 Series

37 Position D-Type, Micro-D Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

No documents available
