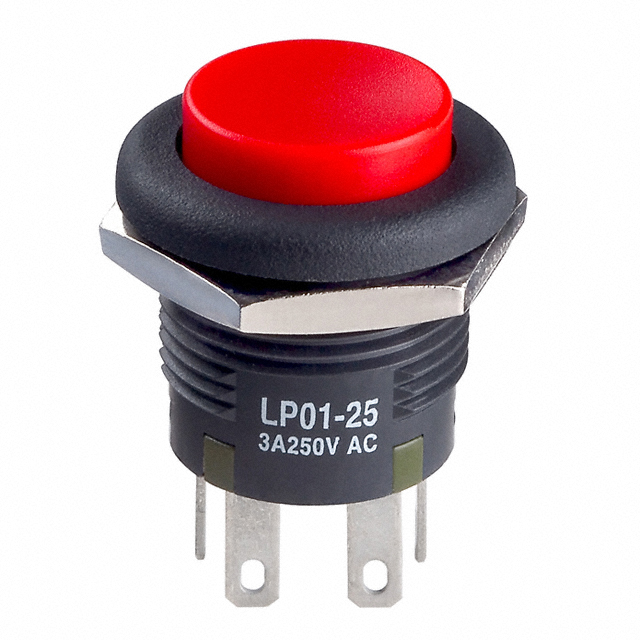

PUSHBUTTON SWITCH, LP01 SERIES, 16 MM, DPDT, ON-(ON), ROUND, RED
Deep-Dive with AI
Search across all available documentation for this part.
LP0125CCKW01C
ActiveNKK Switches
PUSHBUTTON SWITCH, LP01 SERIES, 16 MM, DPDT, ON-(ON), ROUND, RED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LP0125CCKW01C |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | DPDT |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 3 A |
| Electrical Life | 50000 Cycles |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
LP0125C Series
| Part | Termination Style | Termination Style | Termination Style | Mounting Type | Actuator Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Current Rating (Amps) | Actuator Marking | Electrical Life | Mechanical Life | Color - Actuator/Cap | Voltage Rating - DC | Switch Function | Panel Cutout Dimensions [diameter] | Type | Illumination Voltage (Nominal) | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 0.11 in | Quick Connect Solder | 2.8 mm | Panel Mount Front | Button Round | DPDT | 70 °C | -25 °C | 125 V | 3 A | No Marking | 50000 Cycles | 500000 Cycles | Black | 30 V | On-Mom | 16 mm | Standard | ||||
NKK Switches | 0.11 in | Quick Connect Solder | 2.8 mm | Panel Mount Snap-In | Button Round | DPDT | 70 °C | -25 °C | 125 V | 3 A | No Marking | 50000 Cycles | 500000 Cycles | Red | 30 V | On-Mom | 17.3 mm | Standard | ||||
NKK Switches | 0.11 in | Quick Connect Solder | 2.8 mm | Panel Mount Front | Button Round | DPDT | 70 °C | -25 °C | 125 V | 3 A | No Marking | 50000 Cycles | 500000 Cycles | Green | 30 V | On-Mom | 16 mm | Standard | ||||
NKK Switches | 0.11 in | Quick Connect Solder | 2.8 mm | Panel Mount Snap-In | Button Round | DPDT | 125 V | 3 A | No Marking | 50000 Cycles | 500000 Cycles | White | 30 V | On-Mom | 17.3 mm | Illuminated Standard | 2.1 VDC | -10 °C | 50 °C | Green LED | ||
NKK Switches | 0.11 in | Quick Connect Solder | 2.8 mm | Panel Mount Front | Button Round | DPDT | 70 °C | -25 °C | 125 V | 3 A | No Marking | 50000 Cycles | 500000 Cycles | Red | 30 V | On-Mom | 16 mm | Standard | ||||
NKK Switches | 0.11 in | Quick Connect Solder | 2.8 mm | Panel Mount Snap-In | Button Round | DPDT | 70 °C | -25 °C | 125 V | 3 A | No Marking | 50000 Cycles | 500000 Cycles | Black | 30 V | On-Mom | 17.3 mm | Standard |
