71049-501
ActiveLaird Thermal Systems, Inc.

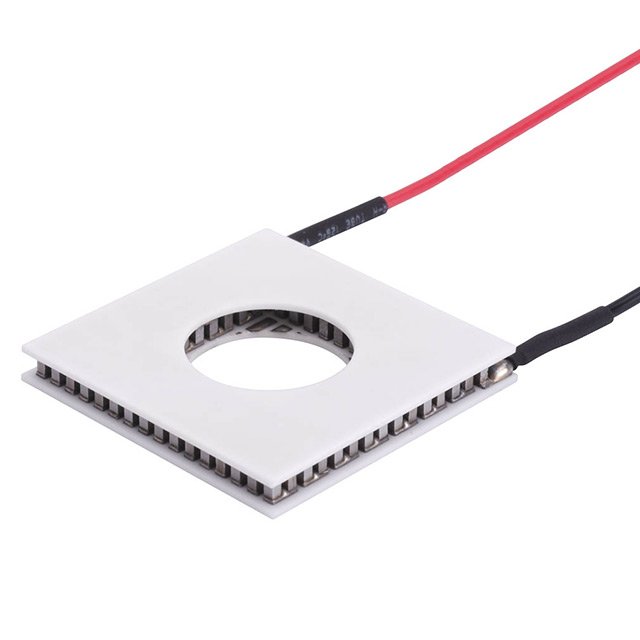

PELTIER SH10,95,06,L,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
71049-501
ActiveLaird Thermal Systems, Inc.
PELTIER SH10,95,06,L,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 71049-501 |
|---|---|
| Current - Max [Max] | 3 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.58 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 19.7 W |
| Resistance | 3.25 Ohms |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [y] | 30 mm |
| Voltage - Max [Max] | 10.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.53 | |
| 5 | $ 44.78 | |||
| 20 | $ 43.41 | |||
| 40 | $ 42.03 | |||
| 60 | $ 40.93 | |||
| 100 | $ 39.83 | |||
Description
General part information
71049 Series
Peltier Module 19.7W @ 25°C 3 A 80°C
