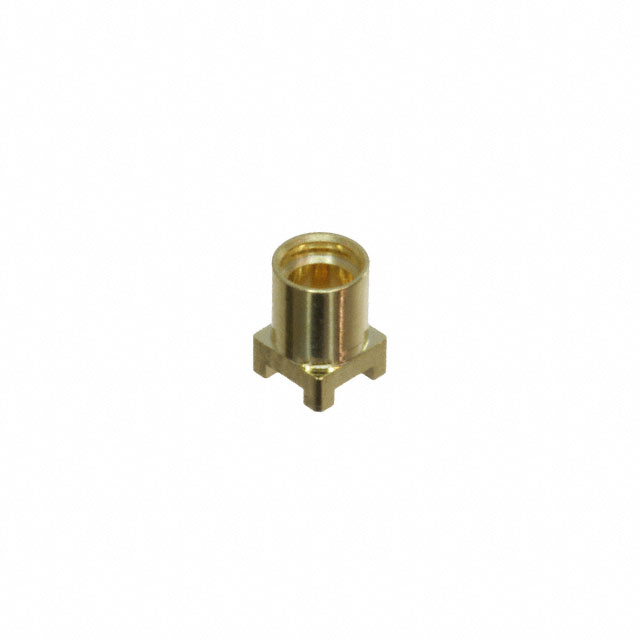

RF12-41-T-00-50-G

Active

Adam Tech

MMCX JACK STR PCB 50 6GHZ BRS B

Search across all available documentation for this part.

Active

Adam Tech

MMCX JACK STR PCB 50 6GHZ BRS B

Technical Specifications

Parameters and characteristics for this part

Specification	RF12-41-T-00-50-G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	White
Impedance	50 Ohms
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	170 V

Part	Connector Style	Shield Termination	Connector Type	Frequency - Max [Max]	Contact Termination	Number of Ports	Voltage Rating	Center Contact Plating	Center Contact Material	Mounting Type	Housing Color	Body Finish	Fastening Type	Impedance	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material
Adam Tech RF12-41-T-00-50-G	MMCX	Solder	Female Socket Jack	6000 MHz	Solder	1	170 V	Gold	Beryllium Copper	Surface Mount	White	Gold	Snap-On	50 Ohms	Brass	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)
