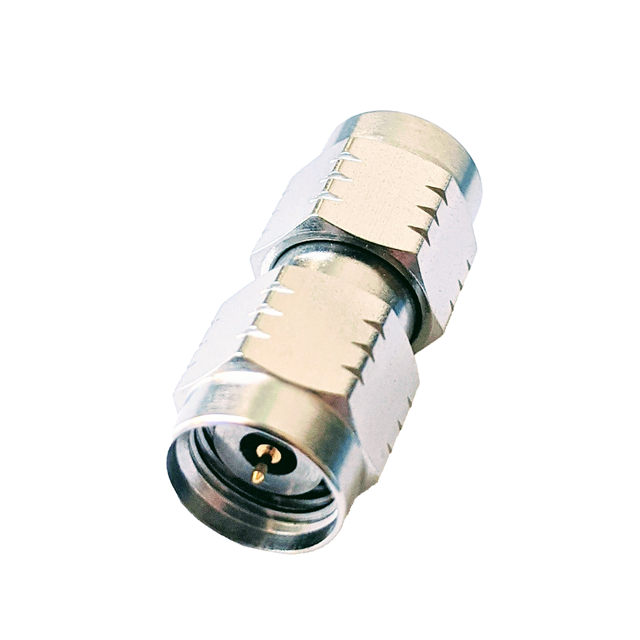

P1AD-24MM
ActiveP1dB Inc
COAX ADAPT 2.4MM TO 2.4MM
Deep-Dive with AI
Search across all available documentation for this part.
P1AD-24MM
ActiveP1dB Inc
COAX ADAPT 2.4MM TO 2.4MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P1AD-24MM |
|---|---|
| Adapter Series [Max] | 2.4 mm |
| Adapter Series [Min] | 2.4 mm |
| Adapter Type | Plug to Plug |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 2.4 mm |
| Convert To (Adapter End) | 2.4mm (APC-2.4, OS-50) Plug, Male Pin |
| Frequency - Max [Max] | 50 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 114.71 | |
Description
General part information
P1AD-24 Series
Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms
