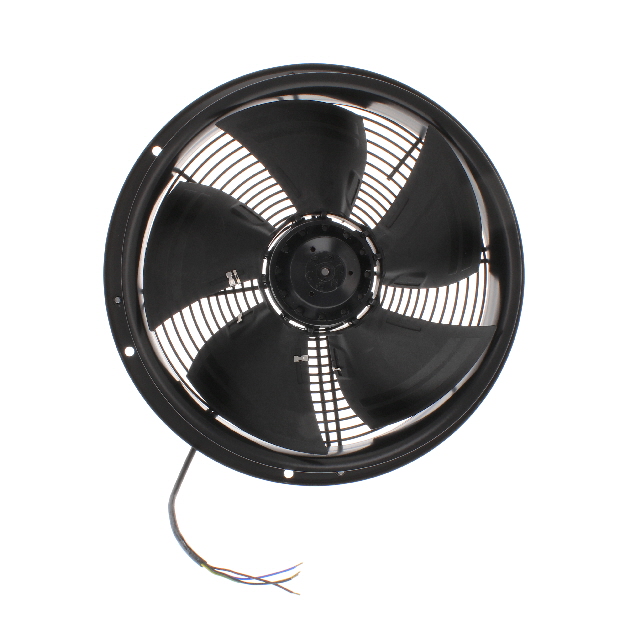

W4E315-CS20-70

Active

ebm-papst Inc.

FAN AXIAL

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	W4E315-CS20-70

Approval Agency	UL, CSA, CE
Bearing Type	Ball
Current Rating (Amps)	660 mA
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel, Polypropylene (PP) Coating
Material - Frame	Steel, Plastic Coating
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	155 W
RPM	1490 RPM
Size / Dimension	Round
Size / Dimension [diameter]	397 mm
Static Pressure	0.341 in H2O
Static Pressure	85 Pa
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	230 VAC
Width [y]	119.8 mm

Part	Approval Agency	Material - Frame	Air Flow	Air Flow	Material - Blade	Termination	Noise	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension	Bearing Type	Width [y]	Fan Type	Weight	Weight	Power (Watts)	RPM	Ingress Protection	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Features	Static Pressure	Static Pressure
ebm-papst Inc. W4E315-CP18-70	CSA UL VDE	Metal	47.88 mł/min	1710 CFM	Metal	2 Wire Leads	64 dB(A)	230 VAC	397 mm	Round	Ball	74 mm	Tubeaxial	2.4 kg	5.3 lbs
ebm-papst Inc. W4E315-CS22-70	CSA UL	Plastic Coating Steel			Polypropylene (PP) Coating Steel	4 Wire Leads with Splice Terminals		115 VAC	397 mm	Round	Ball	119.8 mm	Tubeaxial			160 W	1510 RPM	IP44	1.34 A	-25 °C	-25 °C	70 °C	70 °C	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. W4E315-CS22-71	CSA UL	Plastic Coating Steel			Polypropylene (PP) Coating Steel	4 Wire Leads with Splice Terminals		115 VAC	397 mm	Round	Ball	117 mm	Tubeaxial			160 W	1510 RPM	IP44	1.34 A	-25 °C	-25 °C	70 °C	70 °C	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. W4E315-CS20-70	CE CSA UL	Plastic Coating Steel			Polypropylene (PP) Coating Steel	4 Wire Leads with Splice Terminals		230 VAC	397 mm	Round	Ball	119.8 mm	Tubeaxial			155 W	1490 RPM	IP44	660 mA	-25 °C	-25 °C	70 °C	70 °C	Capacitor Thermal Overload Protector (TOP)	0.341 in H2O	85 Pa
ebm-papst Inc. W4E315-CP22-71	CSA UL VDE	Metal	47.88 mł/min	1710 CFM	Metal	2 Wire Leads	64 dB(A)	115 VAC	397 mm	Round	Ball	74 mm	Tubeaxial	2.4 kg	5.3 lbs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 269.12

General part information

Fan Tubeaxial 230VAC Round - 397mm Dia Ball 4 Wire Leads with Splice Terminals
