H12WD4890

Active

Sensata-Crydom

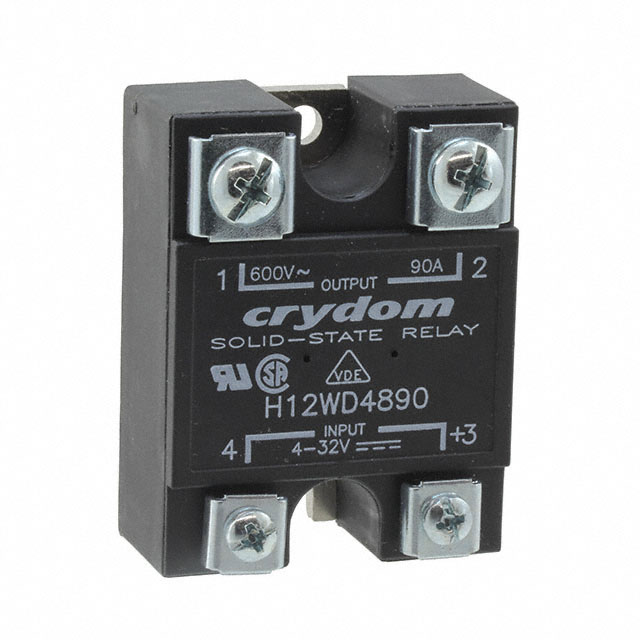

SOLID STATE RELAY, SPST-NO, 90 A, 660 VAC, PANEL MOUNT, SCREW, ZERO CROSSING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCE Declaration of Conformity CMX Series Datasheet +2

H12WD4890

Active

Sensata-Crydom

SOLID STATE RELAY, SPST-NO, 90 A, 660 VAC, PANEL MOUNT, SCREW, ZERO CROSSING

Deep-Dive with AI

DocumentsCE Declaration of Conformity CMX Series Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H12WD4890

Approval Agency	CE, VDE, cURus, CSA
Load Current	90 A
Mounting Type	Chassis Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	AC, Zero Cross
Package / Case	Hockey Puck
Termination Style	Screw Terminal
Voltage - Input [Max]	32 V
Voltage - Input [Min]	4 V
Voltage - Load [Max]	660 V
Voltage - Load [Min]	48 V

H12WD48 Series

Part	Mounting Type	Load Current	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Package / Case
Sensata-Crydom H12WD4875G	Chassis Mount	75 A	32 V	4 V	-40 °C	80 C	CE CSA cURus VDE	AC Zero Cross	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom H12WD4850G	Chassis Mount	50 A	32 V	4 V	-40 °C	80 C	CE CSA cURus VDE	AC Zero Cross	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom H12WD4825PGH	Chassis Mount	25 A	32 V	4 V	-40 °C	80 C	CE CSA cURus VDE	AC Zero Cross	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom H12WD48125	Chassis Mount	125 A	32 V	4 V	-40 °C	80 C	CE CSA cURus VDE	AC Zero Cross	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom H12WD48125PG-10	Chassis Mount	125 A	32 V	4 V	-40 °C	80 C	CE CSA cURus VDE	AC	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom H12WD4890	Chassis Mount	90 A	32 V	4 V	-40 °C	80 C	CE CSA cURus VDE	AC Zero Cross	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom H12WD48125KPG-10	Chassis Mount	125 A	32 V	4 V	-40 °C	80 C	CE CSA cURus VDE	AC	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom H12WD48110-10	Chassis Mount	110 A	32 V	4 V	-40 °C	80 C	CE CSA cURus VDE	AC	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom H12WD4825G-10	Chassis Mount	25 A	32 V	4 V	-40 °C	80 C	CE CSA cURus VDE	AC	48 V	660 V	Screw Terminal	Hockey Puck
Sensata-Crydom H12WD48125PGH	Chassis Mount	125 A	32 V	4 V	-40 °C	80 C	CE CSA cURus VDE	AC Zero Cross	48 V	660 V	Screw Terminal	Hockey Puck

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 131.97
		10	$ 125.68
		50	$ 119.97
Newark	Each	1	$ 137.40

Description

General part information

H12WD48 Series

The H12WD4890 is a Solid State Relay with aluminium base plate, 94V-0 housing, SPST-NO contact, zero crossing switching mode and screw terminals. This H12WD-series panel mount relay features improved SEMS screw and washer, redesigned housing with anti-rotation barrier. Low off-state leakage current (snubberless). Direct bond copper substrate and direct power lead frame. EMC compliant to level-3.
