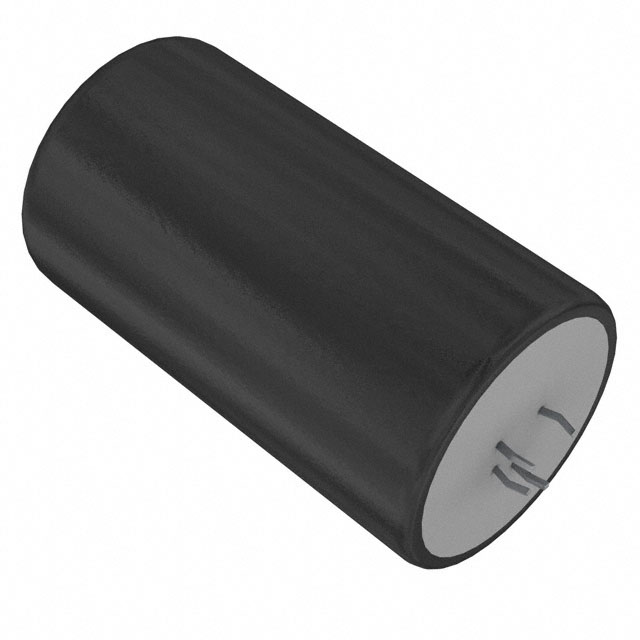

ALC40C102FL450

Active

KEMET

CAP ALUM 1000UF 20% 450V SNAP TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 1000UF 20% 450V SNAP TH

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Capacitance	ESR (Equivalent Series Resistance)	Voltage - Rated	Package / Case	Polarization	Lifetime @ Temp.	Impedance	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Lead Spacing	Lead Spacing
KEMET ALC40C102EL400	General Purpose	-40 °C	105 ░C	10.16 A	4.85 A	1000 µF	118 mOhm	400 V	Radial Can - Snap-In - 4 Lead	Polar	9000 Hrs	73 mOhms	1.575 "	40 mm	20 %	82 mm	3.228 in	Through Hole	22.5 mm	0.886 in
KEMET ALC40C102FL450	General Purpose	-40 °C	105 ░C			1000 µF		450 V	Radial Can - Snap-In - 4 Lead	Polar	9000 Hrs		1.772 in	45 mm	20 %	82 mm	3.228 in	Through Hole	22.5 mm	0.886 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1020	$ 20.99
Newark	Each	250	$ 21.96

General part information

1000 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 9000 Hrs @ 105°C

Technical documentation and resources

No documents available
