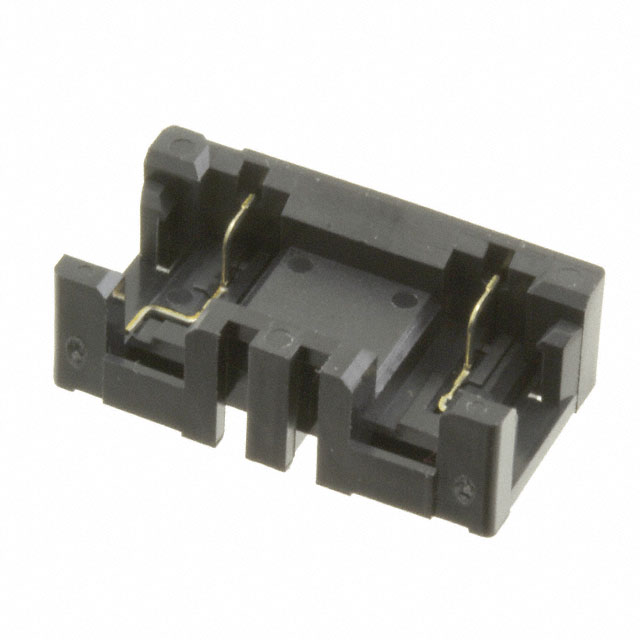

MDF51K-2P-12DSA(20)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 2POS 12MM

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 2POS 12MM

Technical Specifications

Parameters and characteristics for this part

Specification	MDF51K-2P-12DSA(20)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Detent Lock
Features	Board Guide
Insulation Color	Black
Insulation Height	0.266 in
Insulation Height	6.76 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	12 mm
Pitch - Mating	0.472 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	3000 V

Part	Voltage Rating	Contact Type	Termination	Contact Material	Insulation Material	Fastening Type	Shrouding	Insulation Height	Insulation Height	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Rows	Insulation Color	Style	Pitch - Mating	Pitch - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions Loaded	Contact Shape	Contact Length - Post [x]	Contact Length - Post	Features
Hirose Electric USA, Inc. MDF51SU-2P-13V(23)	3000 V	Male Blade	Solder	Brass	Nylon Polyamide (PA)	Detent Lock	Shrouded - 4 Wall	6.5 mm	0.256 in	UL94 V-0	Surface Mount	1 µm	39.4 µin	Tin	1	Beige	Board to Cable/Wire	0.512 in	13 mm	2	-35 °C	85 °C	Header	All	Rectangular
Hirose Electric USA, Inc. MDF51K-2P-12DSA(20)	3000 V	Male Blade	Solder	Brass	Polybutylene Terephthalate (PBT)	Detent Lock	Shrouded - 4 Wall	6.76 mm	0.266 in	UL94 V-0	Through Hole	1 µm	39.4 µin	Tin	1	Black	Board to Cable/Wire	0.472 in	12 mm	2	-35 °C	85 °C	Header	All	Rectangular	0.11 in	2.79 mm	Board Guide
Hirose Electric USA, Inc. MDF51SY-2P-13DSA(21)	3000 V	Male Blade	Solder	Brass	Nylon Polyamide (PA)	Detent Lock	Shrouded - 4 Wall	6.76 mm	0.266 in	UL94 V-0	Through Hole	1 µm	39.4 µin	Tin	1	White	Board to Cable/Wire	0.512 in	13 mm	2	-35 °C	85 °C	Header	All	Rectangular	0.11 in	2.79 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 2 position 0.472" (12.00mm)
