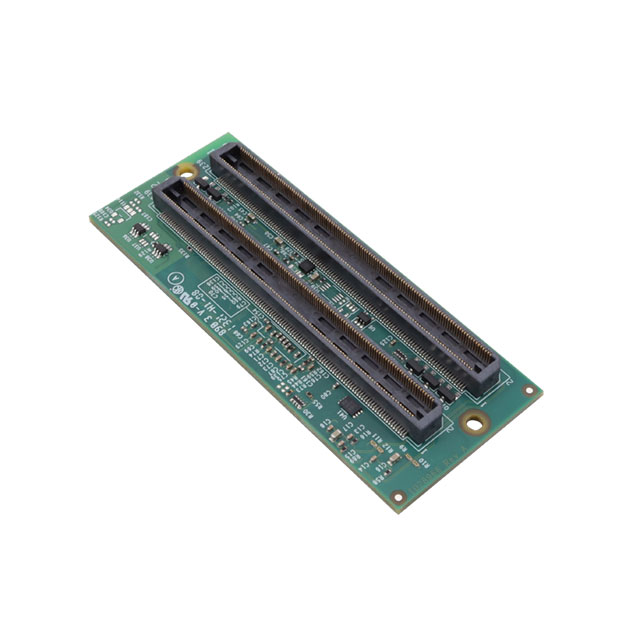

SOMDM3730-11-1783JFIR

Active

Beacon EmbeddedWorks

IC MOD DM3730 800MHZ 256MB

Search across all available documentation for this part.

Active

Beacon EmbeddedWorks

IC MOD DM3730 800MHZ 256MB

Technical Specifications

Parameters and characteristics for this part

Part	Module/Board Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Co-Processor	Speed	Core Processor	Flash Size	RAM Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Beacon EmbeddedWorks SOMDM3730-11-2783IFCR-A	DSP Core MPU	70 °C	0 °C	Board-to-Board (BTB) Socket - 200	TMS320C64x (DSP)	1 GHz	ARM® Cortex®-A8 DM3730	512 MB	256 MB	31.2 mm	76.5 mm	1.23 "	3.01 in
Beacon EmbeddedWorks SOMDM3730-20-1780AGIR	DSP Core MPU	85 °C	-40 °C	Board-to-Board (BTB) Socket - 200	TMS320C64x (DSP)	800 MHz	ARM® Cortex®-A8 DM3730	512 MB	256 MB	15 mm	27 mm	0.59 in	1.06 in
Beacon EmbeddedWorks SOMDM3730-20-2780AGCR	DSP Core MPU	70 °C	0 °C	Board-to-Board (BTB) Socket - 200	TMS320C64x (DSP)	1 GHz	ARM® Cortex®-A8 DM3730	512 MB	256 MB	15 mm	27 mm	0.59 in	1.06 in
Beacon EmbeddedWorks SOMDM3730-11-1783JFIR	MPU Core	85 °C	-40 °C			800 MHz	DM3730	16 MB 512 MB	256 MB	76.2 mm	31 mm	3 "	1.22 "
Beacon EmbeddedWorks SOMDM3730-32-2780AKCR	DSP Core MPU	70 °C	0 °C	Board-to-Board (BTB) Socket - 200	TMS320C64x (DSP)	1 GHz	ARM® Cortex®-A8 DM3730	512 MB	256 MB	15 mm	33 mm	0.59 in	1.3 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DM37x Embedded Module DM3730 800MHz 256MB 512MB (NAND), 16MB (NOR)
