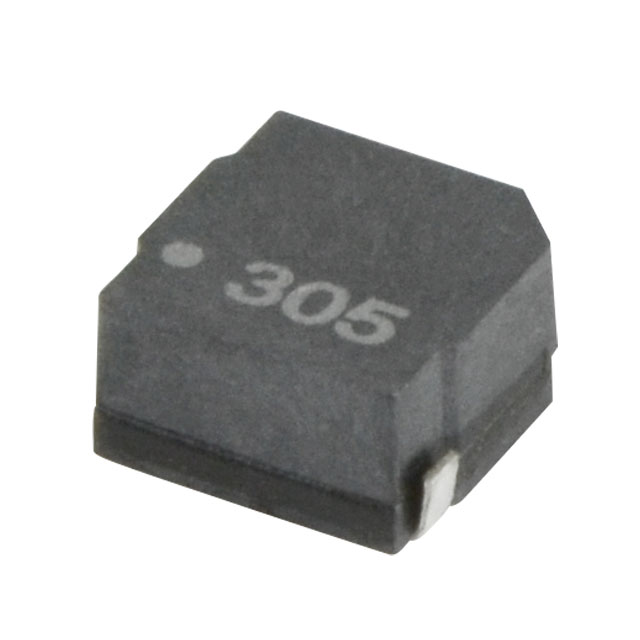

CSS-0575B-SMT-TR

Active

CUI Devices

BUZZER MAGNETIC 3V 5X5MM SMD

Search across all available documentation for this part.

Active

CUI Devices

BUZZER MAGNETIC 3V 5X5MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	CSS-0575B-SMT-TR

Current - Supply	110 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	4 kHz
Height - Seated (Max) [Max] [z]	3.2 mm
Height - Seated (Max) [Max] [z]	0.126 in
Input Type	Zero-Peak Signal
Mounting Type	Surface Mount
Operating Mode	Single Tone
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Port Location	Side
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Sound Pressure Level (SPL)	75 dB
Technology	Magnetic
Termination	Solder Pads
Voltage - Rated	3 VDC
Voltage Range [Max]	4 V
Voltage Range [Min]	2 V

Part	Voltage Range [Min]	Voltage Range [Max]	Operating Mode	Technology	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Termination	Input Type	Port Location	Sound Pressure Level (SPL)	Current - Supply	Mounting Type	Driver Circuitry	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated
CUI Devices CSS-0575B-SMT-TR	2 V	4 V	Single Tone	Magnetic	0.197 in	5 mm	0.197 "	5 mm	Solder Pads	Zero-Peak Signal	Side	75 dB	110 mA	Surface Mount	Externally Driven Transducer	70 °C	-30 ░C	4 kHz	3.2 mm	0.126 in	3 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Transducer, Externally Driven Magnetic 3 V 110mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder Pads
