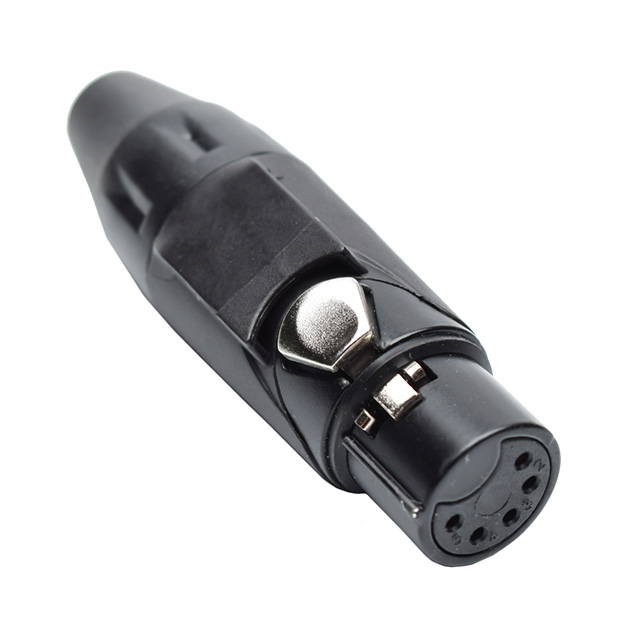

AX5FB2M-AU

Active

AMPHENOL AUDIO

CONN PLUG FMALE XLR 5POS SOLDER

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN PLUG FMALE XLR 5POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Shell Finish	Connector Type	Color	Orientation	Contact Finish - Mating	Mounting Type	Primary Material	Features	Current Rating (Amps)	Ingress Protection	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert
AMPHENOL AUDIO AX5FB3M-AU	Latch Lock	Black	Female Sockets Plug	Black	Keyed	Gold	Free Hanging (In-Line)	Metal	Backshell Cable Clamp	7.5 A	IP40	Zinc Die Cast	-25 °C	75 ░C	XLR
AMPHENOL AUDIO AX5FB2M	Latch Lock	Black	Female Sockets Plug	Black	Keyed		Free Hanging (In-Line)	Metal	Backshell Cable Clamp	7.5 A	IP40	Zinc Die Cast	-25 °C	75 ░C	XLR
AMPHENOL AUDIO AX5FB2M-AU	Latch Lock	Black	Female Sockets Plug	Black	Keyed	Gold	Free Hanging (In-Line)	Metal	Backshell Cable Clamp	7.5 A	IP40	Zinc Die Cast	-25 °C	75 ░C	XLR
AMPHENOL AUDIO AX5FB4M-AU	Latch Lock	Black	Female Sockets Plug	Black	Keyed	Gold	Free Hanging (In-Line)	Metal	Backshell Cable Clamp	7.5 A	IP40	Zinc Die Cast	-25 °C	75 ░C	XLR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources
