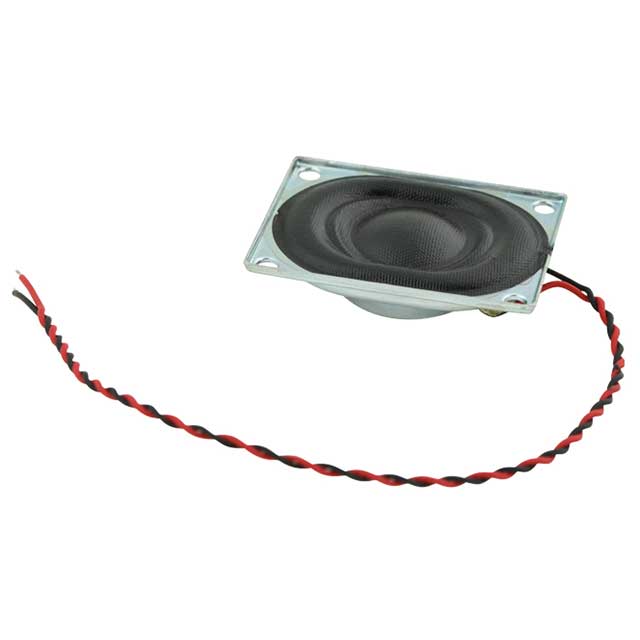

CDS-27204-L100

Active

CUI Devices

SPEAKER 4OHM 2W TOP PORT 93DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 4OHM 2W TOP PORT 93DB

Technical Specifications

Parameters and characteristics for this part

Part	Power - Max [Max]	Efficiency - dBA	Impedance	Port Location	Material - Cone	Technology	Frequency - Self Resonant	Efficiency - Type	Termination	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material - Magnet	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shape	Type	Efficiency - Testing	Power - Rated
CUI Devices CDS-27204-L100	2.5 W	93 dBA	4 Ohms	Top	Cloth	Magnetic	850 Hz	Sound Pressure Level (SPL)	Wire Leads	20 mm	1.063 in	27 mm	0.787 in	Nd-Fe-B	5.9 mm	0.232 "	Rectangular	General Purpose	1W/100mm	2 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 2.51

General part information

4 Ohms General Purpose Speaker 2 W 680 Hz ~ 20 kHz Top Rectangular

Technical documentation and resources
