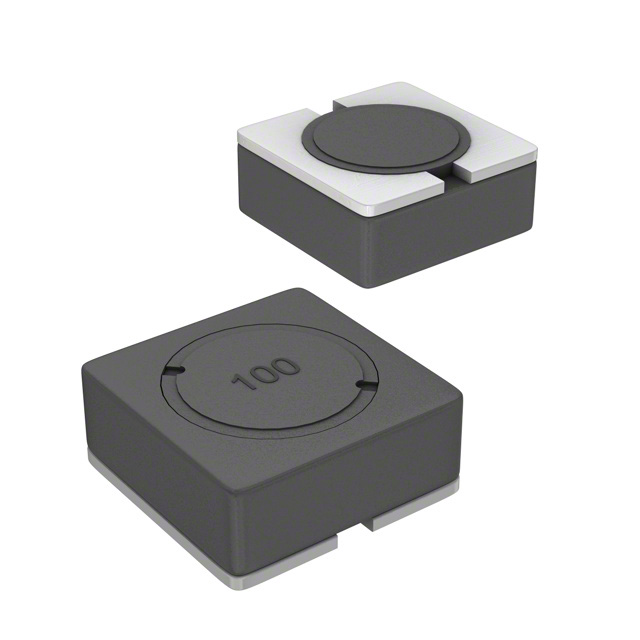

SRR6028-681Y

Active

Bourns Inc.

IND6.8X6.8X2.8MM,680UH30%0.22A,SHDSMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRR6028-681Y

Active

Bourns Inc.

IND6.8X6.8X2.8MM,680UH30%0.22A,SHDSMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR6028-681Y

Current - Saturation (Isat)	200 mA
Current Rating (Amps)	0.22 A
DC Resistance (DCR) [Max]	3.1 Ohm
Frequency - Self Resonant	8 MHz
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Inductance	680 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	13, 796 kHz
Shielding	Shielded
Size / Dimension [x]	6.8 mm
Size / Dimension [x]	0.268 in
Size / Dimension [y]	0.268 in
Size / Dimension [y]	6.8 mm
Tolerance	30 %
Type	Wirewound, Drum Core

SRR6028 Series

Part	Tolerance	Type	Material - Core	DC Resistance (DCR) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency - Self Resonant	Height - Seated (Max)	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Q @ Freq	Inductance Frequency - Test	Mounting Type	Current - Saturation (Isat)	Inductance	Current Rating (Amps)	Shielding
Bourns Inc. SRR6028-681Y	30 %	Drum Core Wirewound	Ferrite	3.1 Ohm	6.8 mm	0.268 in	6.8 mm	0.268 in	8 MHz	3 mm	0.118 in	125 °C	-40 °C	Nonstandard	13 796 kHz	100 kHz	Surface Mount	200 mA	680 µH	0.22 A	Shielded
Bourns Inc. SRR6028-270Y	30 %	Drum Core Wirewound	Ferrite	130 mOhm	6.8 mm	0.268 in	6.8 mm	0.268 in	19 MHz	3 mm	0.118 in	125 °C	-40 °C	Nonstandard	2.52 MHz 9	100 kHz	Surface Mount	1 A	27 µH	1.2 A	Shielded
Bourns Inc. SRR6028-150Y	30 %	Drum Core Wirewound	Ferrite	78 mOhm	6.8 mm	0.268 in	6.8 mm	0.268 in	22 MHz	3 mm	0.118 in	125 °C	-40 °C	Nonstandard	2.52 MHz 9.5	100 kHz	Surface Mount	1.3 A	15 µH	1.7 A	Shielded
Bourns Inc. SRR6028-390Y	30 %	Drum Core Wirewound	Ferrite	195 mOhm	6.8 mm	0.268 in	6.8 mm	0.268 in	17 MHz	3 mm	0.118 in	125 °C	-40 °C	Nonstandard	2.52 MHz 10	100 kHz	Surface Mount	750 mA	39 µH	1 A	Shielded
Bourns Inc. SRR6028-470Y	30 %	Drum Core Wirewound	Ferrite	235 mOhm	6.8 mm	0.268 in	6.8 mm	0.268 in	16 MHz	3 mm	0.118 in	125 °C	-40 °C	Nonstandard	2.52 MHz 10	100 kHz	Surface Mount	720 mA	47 µH	920 mA	Shielded
Bourns Inc. SRR6028-120Y	30 %	Drum Core Wirewound	Ferrite	70 mOhm	6.8 mm	0.268 in	6.8 mm	0.268 in	24 MHz	3 mm	0.118 in	125 °C	-40 °C	Nonstandard	2.52 MHz 10	100 kHz	Surface Mount		12 µH	1.9 A	Shielded
Bourns Inc. SRR6028-331Y	30 %	Drum Core Wirewound	Ferrite	1.4 Ohm	6.8 mm	0.268 in	6.8 mm	0.268 in	10 MHz	3 mm	0.118 in	125 °C	-40 °C	Nonstandard	11 796 kHz	100 kHz	Surface Mount	270 mA	330 µH	370 mA	Shielded
Bourns Inc. SRR6028-102Y	30 %	Drum Core Wirewound	Ferrite	4.5 Ohm	6.8 mm	0.268 in	6.8 mm	0.268 in	7 MHz	3 mm	0.118 in	125 °C	-40 °C	Nonstandard	32 252 kHz	100 kHz	Surface Mount	170 mA	1 mH	150 mA	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.65
		10	$ 0.54
		100	$ 0.44
	Digi-Reel®	1	$ 0.65
		10	$ 0.54
		100	$ 0.44
	Tape & Reel (TR)	500	$ 0.38
		1000	$ 0.36
		1500	$ 0.35
		2500	$ 0.34
		3500	$ 0.33
		5000	$ 0.32
		12500	$ 0.29
		25000	$ 0.29
Newark	Each (Supplied on Full Reel)	1	$ 0.39
		5000	$ 0.38
		10000	$ 0.35
		20000	$ 0.33
		30000	$ 0.30
		50000	$ 0.29

Description

General part information

SRR6028 Series

680 µH Shielded Drum Core, Wirewound Inductor 220 mA 3.1Ohm Max Nonstandard
