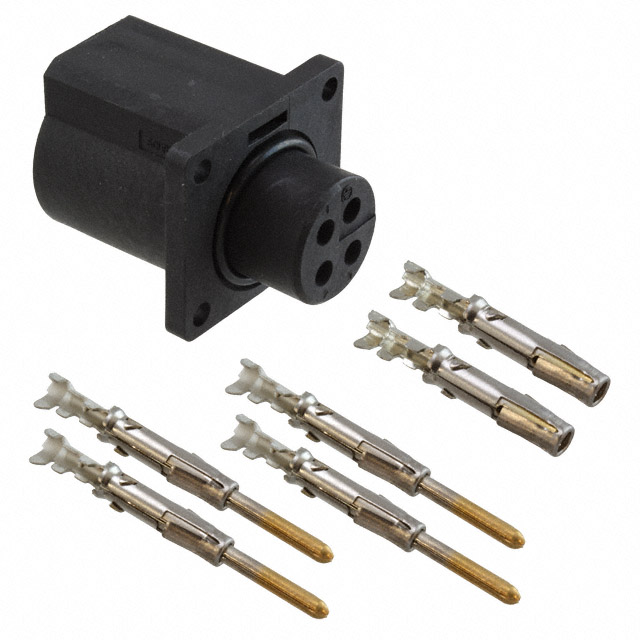

UTL0103G1P20AWG

Active

Souriau-Sunbank by Eaton

CONN CIRC RCPT 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN UTL Series Catalog +1

UTL0103G1P20AWG

Active

Souriau-Sunbank by Eaton

CONN CIRC RCPT 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsTechnical Data Sheet EN UTL Series Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTL0103G1P20AWG

Applications	Industrial
Cable Opening [x]	0.709 in
Cable Opening [x]	18 mm
Color	Black
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	UV Resistant
Ingress Protection	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 5VA
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	10-3
Shielding	Unshielded
Termination	Crimp

UTL01 Series

Part	Ingress Protection	Contact Finish - Mating	Applications	Cable Opening [x]	Cable Opening [x]	Material Flammability Rating	Color	Contact Finish Thickness - Mating	Shell Material	Termination	Contact Material	Mounting Feature	Number of Positions	Connector Type	Features	Fastening Type	Shell Size - Insert	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Insert Material	Type	Contact Size	Contact Shape	Orientation	Housing Color	Note	Contact Type
Souriau-Sunbank by Eaton UTL0103G1P20AWG	IP67 IP68 IP69K	Gold	Industrial	0.709 in	18 mm	UL94 5VA	Black	Flash	Glass Filled Nylon Polyamide (PA)	Crimp	Copper Alloy	Flange	4	Female Sockets Male Pins Receptacle	UV Resistant	Latch Lock	10-3	Plastic	-40 °C	105 ░C	Unshielded	Thermoplastic
Souriau-Sunbank by Eaton UTL0103G1S14AWG	IP67 IP68 IP69K	Gold	Industrial	0.709 in	18 mm	UL94 5VA	Black	Flash	Glass Filled Nylon Polyamide (PA)	Crimp	Copper Alloy	Flange	4	Female Sockets Male Pins Receptacle	UV Resistant	Latch Lock	10-3	Plastic	-40 °C	105 ░C	Unshielded	Thermoplastic
Souriau-Sunbank by Eaton UTL0103G1P16AWG	IP67 IP68 IP69K	Gold	Industrial	0.709 in	18 mm	UL94 5VA	Black	Flash	Glass Filled Nylon Polyamide (PA)	Crimp	Copper Alloy	Flange	4	Female Sockets Male Pins Receptacle	UV Resistant	Latch Lock	10-3	Plastic	-40 °C	105 ░C	Unshielded	Thermoplastic
Souriau-Sunbank by Eaton UTL0103G1P03	IP67 IP68 IP69K					UL94 5VA			Glass Reinforced Nylon Polyamide (PA)			Flange	4	Receptacle Housing		Latch Lock	10-3		-40 °C	105 ░C	Unshielded	Thermoplastic	For Female Sockets and Male Pins	16	Circular	Keyed	Gray	Contacts Not Included	Crimp
Souriau-Sunbank by Eaton UTL0103G1P	IP67 IP68 IP69K					UL94 5VA			Glass Reinforced Nylon Polyamide (PA)			Flange	4	Receptacle Housing		Latch Lock	10-3		-40 °C	105 ░C	Unshielded	Thermoplastic	For Female Sockets and Male Pins	16	Circular	Keyed	Black	Contacts Not Included	Crimp
Souriau-Sunbank by Eaton UTL0103G1P14AWG	IP67 IP68 IP69K	Gold	Industrial	0.709 in	18 mm	UL94 5VA	Black	Flash	Glass Filled Nylon Polyamide (PA)	Crimp	Copper Alloy	Flange	4	Female Sockets Male Pins Receptacle	UV Resistant	Latch Lock	10-3	Plastic	-40 °C	105 ░C	Unshielded	Thermoplastic
Souriau-Sunbank by Eaton UTL0103G1S	IP67 IP68 IP69K					UL94 5VA			Glass Reinforced Nylon Polyamide (PA)			Flange	4	Receptacle Housing		Latch Lock	10-3		-40 °C	105 ░C	Unshielded	Thermoplastic	For Female Sockets and Male Pins	16	Circular	Keyed	Black	Contacts Not Included	Crimp
Souriau-Sunbank by Eaton UTL0103G1S16AWG	IP67 IP68 IP69K	Gold	Industrial	0.709 in	18 mm	UL94 5VA	Black	Flash	Glass Filled Nylon Polyamide (PA)	Crimp	Copper Alloy	Flange	4	Female Sockets Male Pins Receptacle	UV Resistant	Latch Lock	10-3	Plastic	-40 °C	105 ░C	Unshielded	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 16.80
Newark	Each	1	$ 22.92
		100	$ 17.54
		500	$ 15.03
		1000	$ 12.52
		2500	$ 12.00
		5000	$ 11.42
		10000	$ 10.72

Description

General part information

UTL01 Series

4 (3 + PE) Position Circular Connector Receptacle, Female Sockets and Male Pins Crimp

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

UTL Series Catalog

Datasheet
