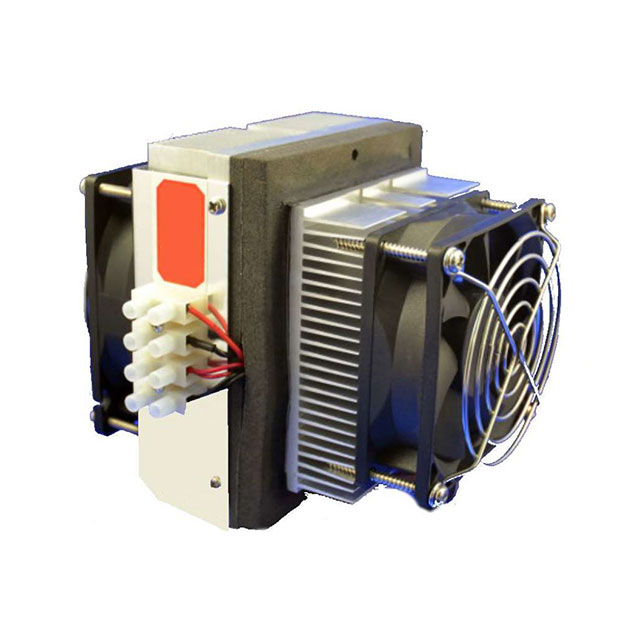

TEMA-AA-50-12
ActiveWakefield-Vette
THERMOELECT ASSY AIR-AIR 50W
Deep-Dive with AI
Search across all available documentation for this part.
TEMA-AA-50-12
ActiveWakefield-Vette
THERMOELECT ASSY AIR-AIR 50W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TEMA-AA-50-12 |
|---|---|
| Current | 8 A |
| Dimensions - Overall [x] | 160 mm |
| Dimensions - Overall [y] | 122.4 mm |
| Dimensions - Overall [z] | 147 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Power - Cooling | 50 W |
| Power - Input | 95 W |
| Voltage | 12 V |
| Weight | 1.8 kg |
| Weight | 4 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 207.17 | |
| 5 | $ 190.51 | |||
| 10 | $ 183.75 | |||
| 25 | $ 175.15 | |||
| 50 | $ 168.91 | |||
Description
General part information
TEMA-AA Series
Air to Air Thermoelectric Assembly 50 W
