1730638

Obsolete

Phoenix Contact

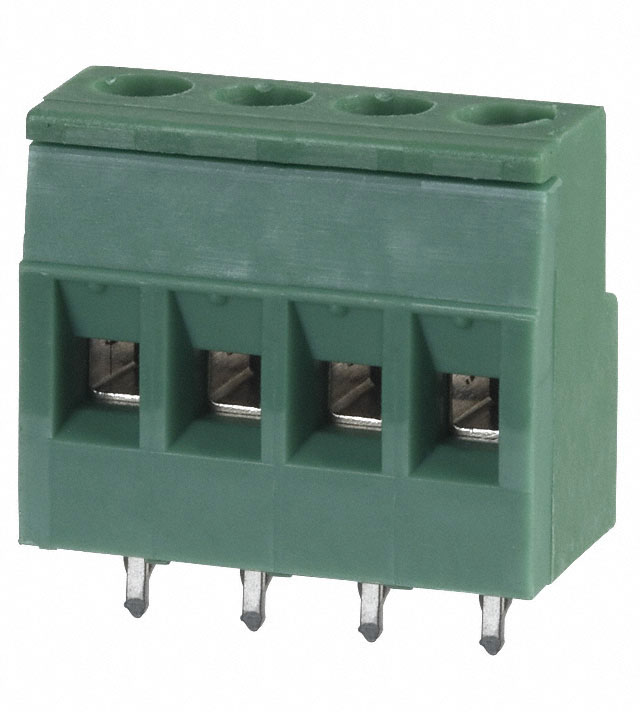

FIXED TERMINAL BLOCKS 4P 5.08MM 90DEG

Search across all available documentation for this part.

Obsolete

Phoenix Contact

FIXED TERMINAL BLOCKS 4P 5.08MM 90DEG

Technical Specifications

Parameters and characteristics for this part

Fixed Terminal Blocks 4P 5.08mm 90DEG

Part	Mounting Type	Current	Wire Termination	Positions Per Level	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Screw Thread	Color	Housing Material	Mating Orientation	Number of Levels	Voltage	Pitch [x]	Pitch [x]	Wire Gauge [Max]	Wire Gauge [Min]
Phoenix Contact 1730638	Through Hole	10 A	Screw - Rising Cage Clamp	4	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	M3	Green	Polyamide (PA) Nylon	Horizontal with Board	1	300 V	0.2 in	5.08 mm	30 AWG	12 AWG
Phoenix Contact 1730625	Through Hole	10 A	Screw - Rising Cage Clamp	3	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	M3	Green	Polyamide (PA) Nylon	Horizontal with Board	1	300 V	0.2 in	5.08 mm	30 AWG	12 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fixed Terminal Blocks 4P 5.08mm 90DEG
