AH49FDNTR-G1
ActiveDiodes Inc
HALL EFFECT SENSOR 5V/7V 3-PIN DFN T/R
Deep-Dive with AI
Search across all available documentation for this part.
AH49FDNTR-G1
ActiveDiodes Inc
HALL EFFECT SENSOR 5V/7V 3-PIN DFN T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AH49FDNTR-G1 |
|---|---|
| Axis | Single |
| Current - Supply (Max) [Max] | 4 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Analog Voltage |

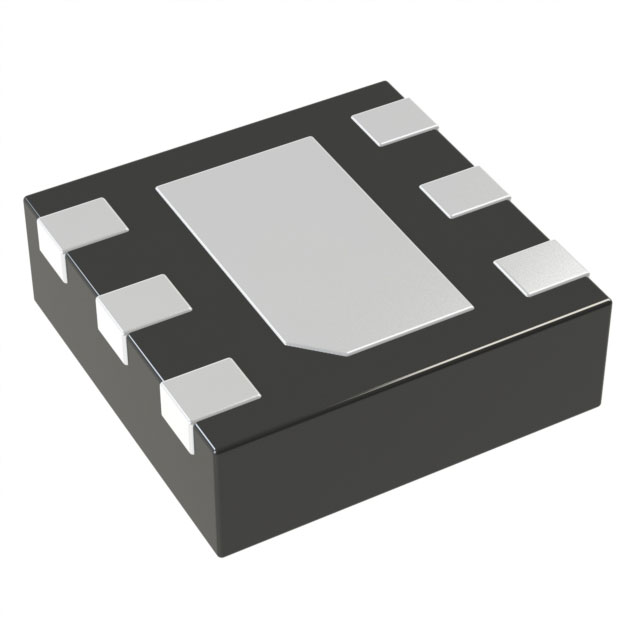

| Package / Case | 6-UDFN Exposed Pad |
| Sensing Range | 80 mT |
| Supplier Device Package | U-DFN2020-6 (Type C) |
| Technology | Hall Effect |
| Voltage - Supply [Max] | 8 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.38 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.58 | ||
| 10 | $ 0.44 | |||
| 25 | $ 0.38 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 3000 | $ 0.17 | ||
Description
General part information
AH49F Series
TN1.pdf
