171619 GY001

Obsolete

ALPHA WIRE

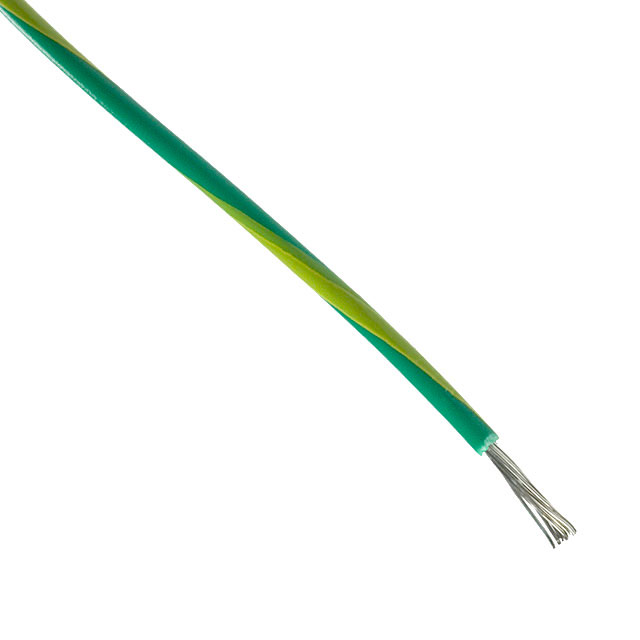

HOOK-UP STRND 16AWG GRN/YW 1000'

Search across all available documentation for this part.

Obsolete

ALPHA WIRE

HOOK-UP STRND 16AWG GRN/YW 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	171619 GY001

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	2.01 mm
Jacket (Insulation) Diameter [diameter]	0.079 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Green, Yellow Stripe
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Qualification	MIL-W-16878E/1
Voltage	600 V
Wire Gauge	16 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Qualification	Voltage	Conductor Material	Length	Length	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Jacket Color
ALPHA WIRE 171619 GY001	0.25 mm	0.01 in	2.01 mm	0.079 in	MIL-W-16878E/1	600 V	Copper Tinned	1000 ft	304.8 m	16 AWG	19 Strands	29 AWG	Hook-Up	105 ░C	-55 °C	Poly-Vinyl Chloride (PVC)	Green Yellow Stripe
