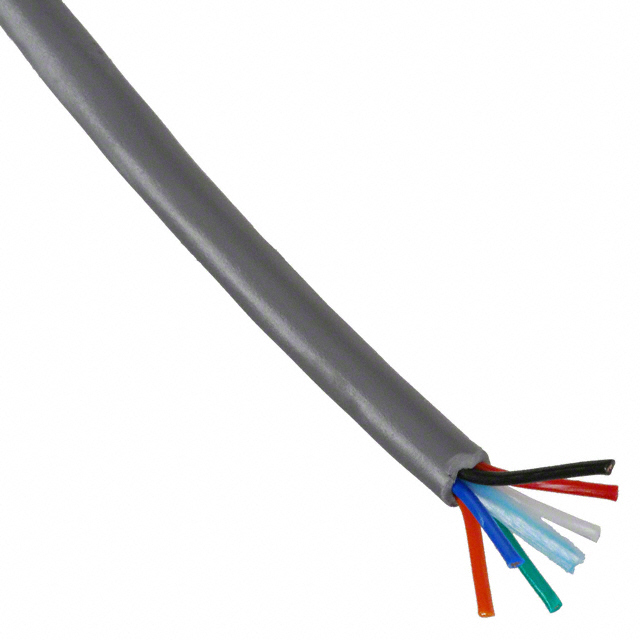

1176L SL002

Active

ALPHA WIRE

CABLE 6COND 22AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 22AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	1176L SL002

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.209 in
Jacket (Insulation) Diameter [diameter]	5.31 mm
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Wire Gauge	Jacket Color	Conductor Material	Voltage	Length	Length	Conductor Insulation	Cable Type	Length [x]	Length [x]
ALPHA WIRE 1176L SL001	0.025 in	0.635 mm	6	0.209 in	5.31 mm	7	30 AWG	Communication Control	22 AWG	Slate	Copper Tinned	300 V	1000 ft	304.8 m	Low Smoke Zero Halogen (LSZH)	Multi-Conductor
ALPHA WIRE 1176L SL002	0.025 in	0.635 mm	6	0.209 in	5.31 mm	7	30 AWG	Communication Control	22 AWG	Slate	Copper Tinned	300 V			Low Smoke Zero Halogen (LSZH)	Multi-Conductor	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.90

General part information

6 Conductor Multi-Conductor Cable Slate 22 AWG 500.0' (152.4m)
