ACSC08-51SGWA

Active

Kingbright

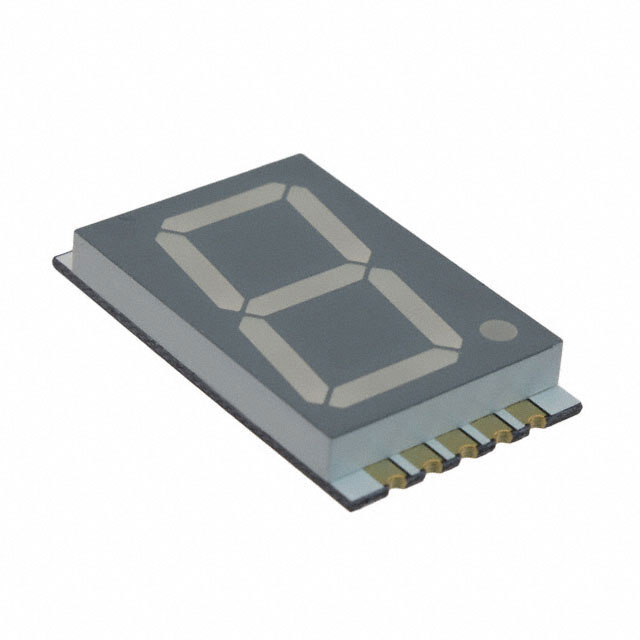

DISPLAY 7SEG 0.8" SGL GRN 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACSC08-51SGWA

Active

Kingbright

DISPLAY 7SEG 0.8" SGL GRN 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACSC08-51SGWA

Color	Green
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	20.32 mm
Digit/Alpha Size	0.8 in
Display Type	7-Segment
Millicandela Rating	7.4 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	62.5 mW
Size / Dimension [x]	24 mm, 0.945 in
Size / Dimension [y]	16.8 mm, 0.661 "
Size / Dimension [z]	0.148 ", 3.75 mm
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	565 nm

ACSC08 Series

Part	Display Type	Wavelength - Peak	Common Pin	Number of Characters [custom]	Millicandela Rating	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Color	Current - Test	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Kingbright ACSC08-51SURKWA	7-Segment	650 nm	Common Cathode	1	47 mcd	75 mw	1.95 V	20.32 mm	0.8 in	Red	20 mA	10-SMD No Lead	0.661 " 16.8 mm	0.945 in 24 mm	0.148 " 3.75 mm
Kingbright ACSC08-51SGWA	7-Segment	565 nm	Common Cathode	1	7.4 mcd	62.5 mW	2.2 V	20.32 mm	0.8 in	Green	20 mA	10-SMD No Lead	0.661 " 16.8 mm	0.945 in 24 mm	0.148 " 3.75 mm
Kingbright ACSC08-51SYKWA	7-Segment	590 nm	Common Cathode	1	76 mcd	75 mw	2 V	20.32 mm	0.8 in	Yellow	20 mA	10-SMD No Lead	0.661 " 16.8 mm	0.945 in 24 mm	0.148 " 3.75 mm
Kingbright ACSC08-51CGKWA	7-Segment		Common Cathode	1	22 mcd	75 mw	2.1 V	20.32 mm	0.8 in	Green	20 mA	10-SMD No Lead	0.661 " 16.8 mm	0.945 in 24 mm	0.148 " 3.75 mm
Kingbright ACSC08-51QBWA/D	7-Segment	468 nm	Common Cathode	1	12 mcd	120 mW	3.3 V	20.32 mm	0.8 in	Blue	20 mA	10-SMD No Lead	0.661 " 16.8 mm	0.945 in 24 mm	0.148 " 3.75 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ACSC08 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2.2V 20mA 0.945" H x 0.661" W x 0.148" D (24.00mm x 16.80mm x 3.75mm) 10-SMD, No Lead
