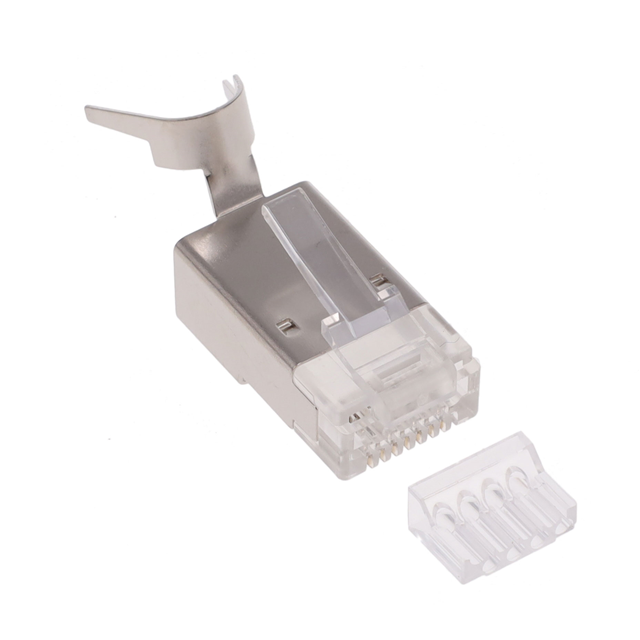

MTP-88-W-S-C8-A

Active

Adam Tech

CAT8 PLUG, 8P8C, 30U PLATING, SO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsComms, AudioVideo, Data, Other Signaling-circuit Acc.Datasheet

MTP-88-W-S-C8-A

Active

Adam Tech

CAT8 PLUG, 8P8C, 30U PLATING, SO

Deep-Dive with AI

DocumentsComms, AudioVideo, Data, Other Signaling-circuit Acc.Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTP-88-W-S-C8-A

Cable Type	Flat Oval Cable, Solid Wires
Color	Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Housing Material	Polycarbonate (PC)
Length	0.882 in
Length	22.4 mm
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat8
Shielding	Unshielded
Termination	IDC
Voltage Rating	150 VAC
Wire Gauge [Max]	23 AWG
Wire Gauge [Min]	21 AWG

MTP-88 Series

Part	Voltage Rating	Termination	Length	Length	Contact Finish	Contact Material	Shielding	Current Rating (Amps)	Housing Material	Connector Type	Color	Number of Positions/Contacts	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Cable Type	Accessory Type	For Use With/Related Products	Ratings	Contact Finish Thickness	Length [x]	Length [x]
Adam Tech MTP-88-G	150 VDC	IDC	0.883 "	22.43 mm	Gold	Phosphor Bronze	Unshielded	1.5 A	Polycarbonate (PC)	Plug	Clear	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	24 AWG	26 AWG	Flat Oval Cable Stranded Wires
Adam Tech MTP-88-C8-SR-A3											Blue							Strain Relief	Cat8 Modular RJ45 Plugs
Adam Tech MTP-88-C6-SR-A1											Clear							Strain Relief	Cat6 Modular RJ45 Plugs
Adam Tech MTP-88-W-S-C6-A	150 VAC	IDC	0.863 in	21.92 mm	Gold	Copper Alloy	Unshielded	1.5 A	Polycarbonate (PC)	Plug	Clear	8p8c (RJ45 Ethernet)	30 Áin	0.76 Ám	21 AWG	23 AWG	Flat Oval Cable Solid Wires			Cat6
Adam Tech MTP-88-X-S-C6-A	150 VAC	IDC	0.863 in	21.92 mm	Gold	Copper Alloy	Unshielded	1.5 A	Polycarbonate (PC)	Plug	Clear	8p8c (RJ45 Ethernet)			21 AWG	23 AWG	Flat Oval Cable Solid Wires			Cat6	Flash
Adam Tech MTP-88-W-S-C8-A	150 VAC	IDC	0.882 in	22.4 mm	Gold	Copper Alloy	Unshielded	1.5 A	Polycarbonate (PC)	Plug	Clear	8p8c (RJ45 Ethernet)	30 Áin	0.76 Ám	21 AWG	23 AWG	Flat Oval Cable Solid Wires			Cat8
Adam Tech MTP-88-X-S-C8-A	150 VAC	IDC	0.882 in	22.4 mm	Gold	Copper Alloy	Unshielded	1.5 A	Polycarbonate (PC)	Plug	Clear	8p8c (RJ45 Ethernet)			21 AWG	23 AWG	Flat Oval Cable Solid Wires			Cat8	Flash
Adam Tech MTP-88-HD-A											Black							Hood	RJ45 Plugs
Adam Tech MTP-88-X-EMI-SP1	150 VAC	IDC			Gold	Copper Alloy	Unshielded	1.5 A	Polycarbonate (PC)	Plug	Clear	8p8c (RJ45 Ethernet)			24 AWG	26 AWG	Flat Oval Cable Not Specified				Flash	30.2 mm	1.189 "
Adam Tech MTP-88-W-S-C6A2	150 VAC	IDC	0.882 in	22.4 mm	Gold	Copper Alloy	Unshielded	1.5 A	Polycarbonate (PC)	Plug	Clear	8p8c (RJ45 Ethernet)	30 Áin	0.76 Ám	23 AWG	24 AWG	Flat Oval Cable Solid Wires			Cat6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.33
		10	$ 1.01
		25	$ 0.91
		50	$ 0.84
		100	$ 0.78
		250	$ 0.70
		500	$ 0.65
		1000	$ 0.61
		2500	$ 0.55
