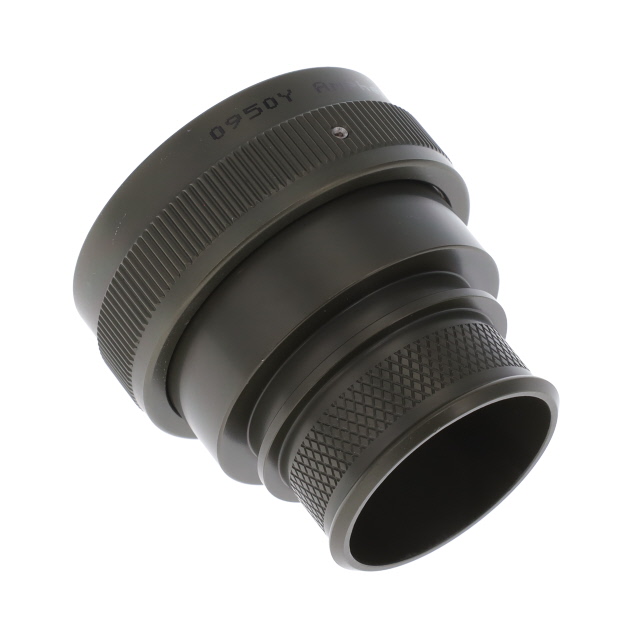

M85049/82-24W03

Active

Amphenol Interconnect India

CONN BACKSHELL BANDING SZ24 OLIV

Deep-Dive with AI

Search across all available documentation for this part.

M85049/82-24W03

Active

Amphenol Interconnect India

CONN BACKSHELL BANDING SZ24 OLIV

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/82-24W03

Cable Exit	180 °
Cable Opening [custom]	25.65 mm
Cable Opening [custom]	1.01 in
Color	Olive
Diameter - Outside [diameter]	47.88 mm
Diameter - Outside [diameter]	1.885 "
Features	Self Locking
For Use With/Related Products	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	24
Shielding	Unshielded
Type	Banding, Backshell

M85049/82 Series

Part	Type	Color	Shell Size - Insert	Plating	Cable Opening [x]	Cable Opening [x]	Shielding	Features	Cable Exit	Material	For Use With/Related Products	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]
Amphenol Interconnect India M85049/82-20Z03	Backshell Banding	Black	20 37	Zinc Cobalt	0.82 in	20.83 mm	Unshielded	Self Locking	180 °	Aluminum Alloy	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	41.66 mm	1.64 in
Amphenol Interconnect India M85049/82-12Z03	Backshell Banding	Black	7 12	Zinc Cobalt			Unshielded	Self Locking	180 °	Aluminum Alloy	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III		28.96 mm	11.43 mm	0.45 in	1.14 "
Amphenol Interconnect India M85049/82-20N02	Backshell Banding	Silver	20 37	Electroless Nickel			Unshielded	Self Locking	180 °	Aluminum Alloy	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III		41.53 mm	16.26 mm	0.64 in	1.635 in
Amphenol Interconnect India M85049/82-24Z02	Backshell Banding	Black	24	Zinc Cobalt			Unshielded	Self Locking	180 °	Aluminum Alloy	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III		48.01 mm	19.3 mm	0.76 in	1.89 "
Amphenol Interconnect India M85049/82-14Z03	Backshell Banding	Black		Zinc Cobalt			Unshielded	Self Locking	180 °	Aluminum Alloy	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III		32 mm			1.26 in	12 14	0.57 in	14.48 mm
Amphenol Interconnect India M85049/82-24Z03	Backshell Banding	Black	24	Zinc Cobalt			Unshielded	Self Locking	180 °	Aluminum Alloy	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III		48.01 mm			1.89 "		1.01 in	25.65 mm
Amphenol Interconnect India M85049/82-24W03	Backshell Banding	Olive	24	Cadmium			Unshielded	Self Locking	180 °	Aluminum Alloy	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III		47.88 mm			1.885 "		1.01 in	25.65 mm
Amphenol Interconnect India M85049/82-08Z03	Backshell Banding	Black	8	Zinc Cobalt			Unshielded	Self Locking	180 °	Aluminum Alloy	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III		22.61 mm			0.89 in		0.26 in	6.6 mm
Amphenol Interconnect India M85049/82-20Z02	Backshell Banding	Black	20 37	Zinc Cobalt			Unshielded	Self Locking	180 °	Aluminum Alloy	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	41.66 mm	1.64 in	16.26 mm	0.64 in
Amphenol Interconnect India M85049/82-28Z03	Backshell Banding	Black	28	Zinc Cobalt			Unshielded	Self Locking	180 °	Aluminum Alloy	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III		54.36 mm	28.96 mm	1.14 in	2.14 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.77
		1	$ 550.22
		10	$ 47.50
		25	$ 45.68
		50	$ 44.15
		100	$ 41.72

Description

General part information

M85049/82 Series

Olive Connector Backshell, Banding 24

Documents

Technical documentation and resources

No documents available
