4000-78E07K999
ObsoleteTE Connectivity Potter & Brumfield Relays

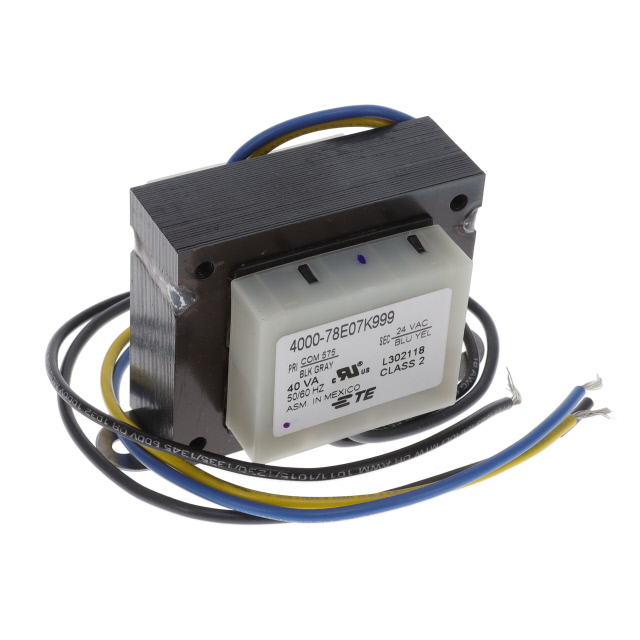

PWR XFMR LAMINATED 40VA CHAS MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4000-78E07K999
ObsoleteTE Connectivity Potter & Brumfield Relays
PWR XFMR LAMINATED 40VA CHAS MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4000-78E07K999 |
|---|---|
| Center Tap | False |
| Height - Seated (Max) [Max] [z] | 55.58 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 40 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension [x] | 90.47 mm |
| Size / Dimension [y] | 55.37 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Primary | 575 V |
| Voltage - Secondary (Full Load) | 24 V |
| Weight | 725.7 g |
| Weight | 1.6 lbs |
4000 Series
| Part | Secondary Winding(s) | Termination Style | Voltage - Primary | Power - Max [Max] | Center Tap | Voltage - Secondary (Full Load) | Type | Size / Dimension [y] | Size / Dimension [x] | Weight | Weight | Primary Winding(s) | Mounting Type | Height - Seated (Max) [Max] [z] | Power - Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Potter & Brumfield Relays | Single | Wire Leads | 208 V 240 V | 75 VA | 24 V | Laminated Core | 2.5 in | 4 in | 2.4 lbs | 1.1 kg | Single | Chassis Mount | |||
TE Connectivity Potter & Brumfield Relays | Single | Quick Connect Solder | 120 V | 30 VA | 12 V | Laminated Core | Single | Chassis Mount | |||||||
TE Connectivity Potter & Brumfield Relays | Single | Wire Leads | 575 V | 50 VA | 24 V | Laminated Core | 2.5 in | 90.47 mm | 2.1 lb | 952.5 g | Single | Chassis Mount | 55.58 mm | ||
TE Connectivity Potter & Brumfield Relays | Single | Wire Leads | 277 V | 50 VA | 24 V | Laminated Core | 66.55 mm | 90.47 mm | 2.1 lb | 952.5 g | Single | Chassis Mount | 55.58 mm | ||
TE Connectivity Potter & Brumfield Relays | Single | Quick Connect Solder | 480 V | 24 V | Laminated Core | 55.58 mm | 90.47 mm | Single | Chassis Mount | 40 VA | |||||
TE Connectivity Potter & Brumfield Relays | Single | Quick Connect Solder | 208 V 240 V | 24 V | Laminated Core | 1.4 lbs | 635 g | Multiple Taps Single | Chassis Mount | 40 VA | |||||
TE Connectivity Potter & Brumfield Relays | Single | Wire Leads | 380 V 415 V | 24 V | Laminated Core | 2.15 " | 90.47 mm | 1.6 lbs | 725.7 g | Single | Chassis Mount | 55.58 mm | 40 VA | ||
TE Connectivity Potter & Brumfield Relays | Single | Wire Leads | 208 V 240 V | 50 VA | 24 V | Laminated Core | 66.55 mm | 90.47 mm | 2.1 lb | 952.5 g | Single | Chassis Mount | 55.58 mm | ||
TE Connectivity Potter & Brumfield Relays | Single | Wire Leads | 120 V | 24 V | Laminated Core | Single | Chassis Mount | 40 VA | |||||||
TE Connectivity Potter & Brumfield Relays | Single | Wire Leads | 575 V | 24 V | Laminated Core | 55.37 mm | 90.47 mm | 1.6 lbs | 725.7 g | Single | Chassis Mount | 55.58 mm | 40 VA |
