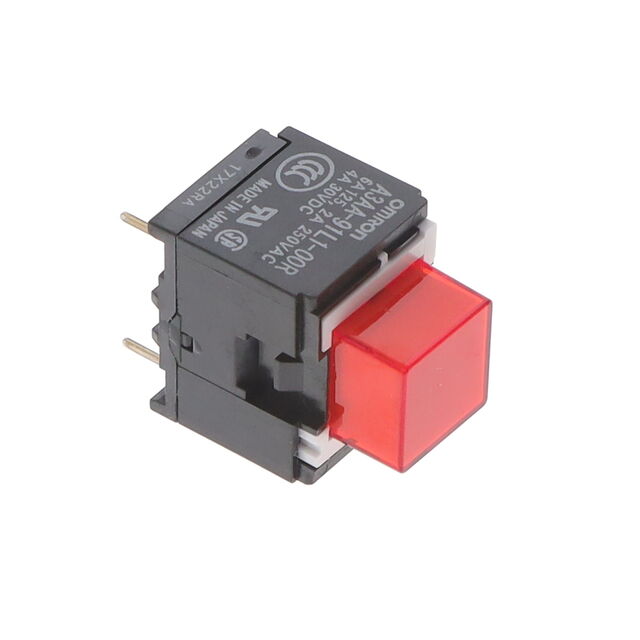

A3AA-91L1-00R

Active

Omron Electronics Inc-EMC Div

SWITCH PUSH SPST-NO 6A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH PUSH SPST-NO 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	A3AA-91L1-00R

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Ingress Protection	IP00
Mounting Type	Through Hole
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Switch Function	Off-On
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Switch Function	Circuit	Actuator Type	Electrical Life	Voltage Rating - DC	Mounting Type	Termination Style	Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Voltage Rating - AC	Actuator Marking	Ingress Protection	Current Rating (Amps)	Color - Actuator/Cap	Illumination Voltage (Nominal)	Illumination Type, Color
Omron Electronics Inc-EMC Div A3AA-91L1-00R	Off-On	SPST-NO	Button Square	50000 Cycles	30 V	Through Hole	PC Pin	Standard	55 °C	-10 °C	125 V	No Marking	IP00	4 A 6 A	Red
Omron Electronics Inc-EMC Div A3AA-91L1-00B	Off-On	SPST-NO	Button Square	50000 Cycles	30 V	Through Hole	PC Pin	Standard	55 °C	-10 °C	125 V	No Marking	IP00	4 A 6 A	Black
Omron Electronics Inc-EMC Div A3AA-91L1-00ER	Off-On	SPST-NO	Button Square	50000 Cycles	30 V	Through Hole	PC Pin	Illuminated Standard	55 °C	-10 °C	125 V	No Marking	IP00	4 A 6 A	Red	2 VDC	LED Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Through Hole
