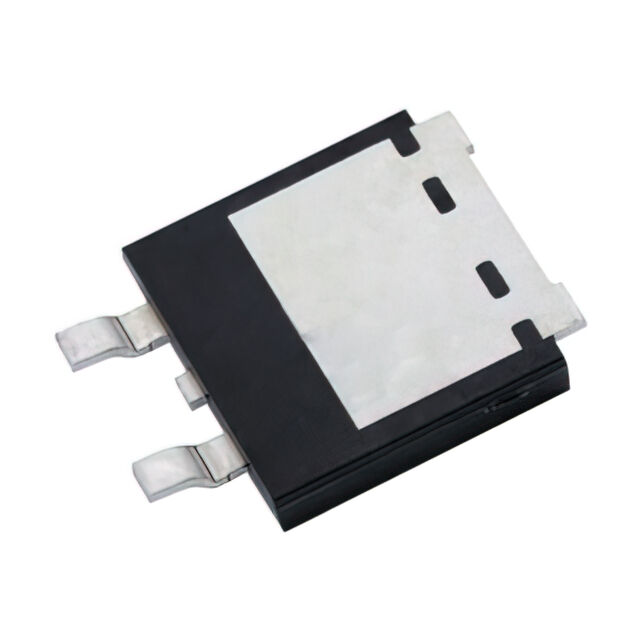

VS-12CDU06-M3/I
ActiveVishay General Semiconductor - Diodes Division
DIODE ARRAY GP 600V 6A TO263AC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VS-12CDU06-M3/I
ActiveVishay General Semiconductor - Diodes Division
DIODE ARRAY GP 600V 6A TO263AC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VS-12CDU06-M3/I |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 6 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 °C |
| Package / Case | D2PAK (2 Leads + Tab), Variant, TO-263-3 |
| Reverse Recovery Time (trr) | 65 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-263AC (SMPD) |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.30 | |
| 10 | $ 1.06 | |||
| 100 | $ 0.83 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.57 | |||
| Digi-Reel® | 1 | $ 1.30 | ||
| 10 | $ 1.06 | |||
| 100 | $ 0.83 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.57 | |||
| Tape & Reel (TR) | 2000 | $ 0.49 | ||
| 4000 | $ 0.49 | |||
Description
General part information
12CDU06 Series
Diode Array 1 Pair Common Cathode 600 V 6A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), Variant
