1424498

Active

Phoenix Contact

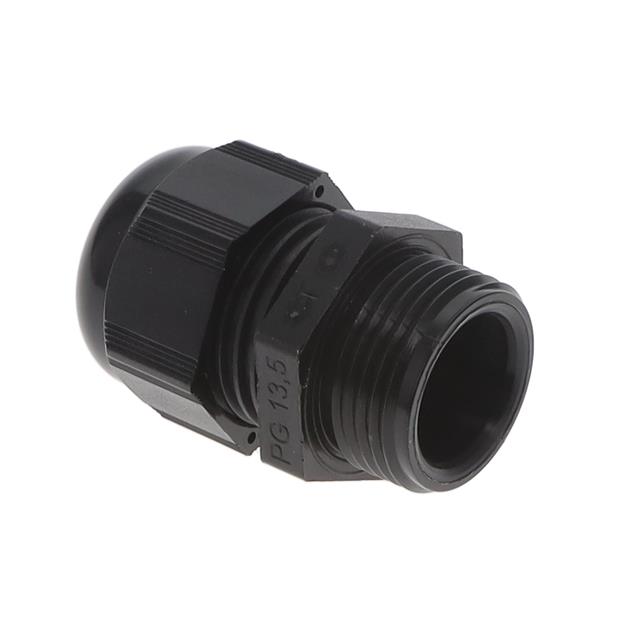

CABLE ACCESSORIES GLAND POLYAMIDE JET BLACK

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE ACCESSORIES GLAND POLYAMIDE JET BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	1424498

Color	Black
Includes	Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	PG13.5
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Ingress Protection	Thread Size	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Material	Includes	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1411173	6 mm	0.236 in	Silver	IP66 IP68 IP69	PG13.5	0.256 in	6.5 mm	100 °C	-40 °C	Brass Nickel Plated	O-Ring Seal	Cable Gland	0.472 in	12 mm
Phoenix Contact 1424498	6 mm	0.236 in	Black	IP68 - Dust Tight Waterproof	PG13.5	0.394 in	10 mm	100 °C	-40 °C	Polyamide (PA) Nylon	Seal	Cable Gland	0.472 in	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG13.5 Black
