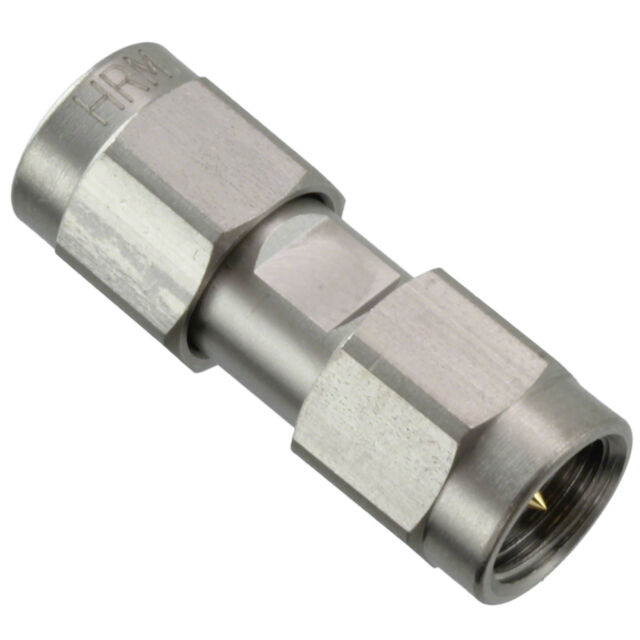

HRM-502-1S(40)
ActiveHirose Electric USA, Inc.
COAX ADAPT SMA TO SMA
Deep-Dive with AI
Search across all available documentation for this part.
HRM-502-1S(40)
ActiveHirose Electric USA, Inc.
COAX ADAPT SMA TO SMA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HRM-502-1S(40) |
|---|---|
| Adapter Series | SMA to SMA |
| Adapter Type | Plug to Plug |
| Body Material | Stainless Steel |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | SMA Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 57.18 | |
| 20 | $ 43.84 | |||
| 40 | $ 41.23 | |||
| 60 | $ 39.77 | |||
| 100 | $ 39.50 | |||
Description
General part information
HRM-502 Series
Adapter Coaxial Connector SMA Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
Documents
Technical documentation and resources
No documents available
