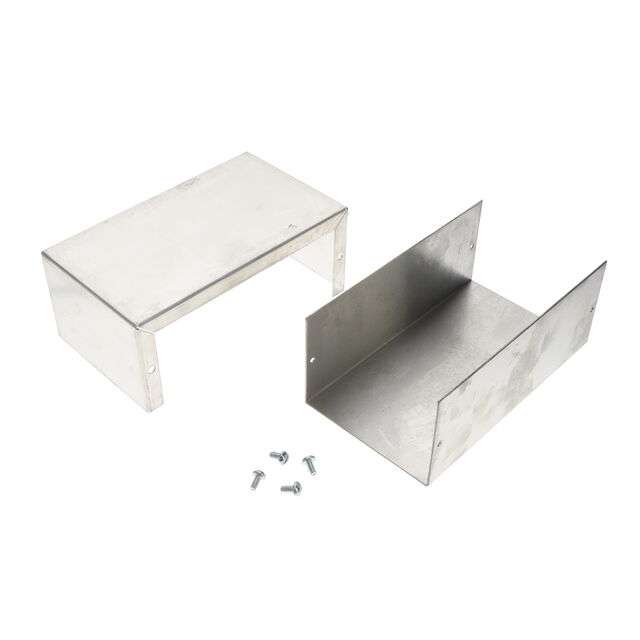

TF780 PLAIN
ActiveLMB Heeger Inc.
CHASSIS ALUM 5.25"L X 3"W
Deep-Dive with AI
Search across all available documentation for this part.
TF780 PLAIN
ActiveLMB Heeger Inc.
CHASSIS ALUM 5.25"L X 3"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TF780 PLAIN |
|---|---|
| Area (L x W) [custom] | 15.8 in˛ |
| Area (L x W) [custom] | 102 cm˛ |
| Color | Unpainted |
| Container Type | Chassis |
| Design | U Shaped Pieces |
| Height [z] | 2.125 in |
| Height [z] | 53.98 mm |
| Material | Metal, Aluminum |
| Size / Dimension [x] | 5.25 " |
| Size / Dimension [x] | 133.35 mm |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [y] | 3 " |
| Thickness | 0.04 in |
| Thickness | 1.02 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.43 | |
Description
General part information
TF780 Series
Chassis Metal, Aluminum Unpainted U Shaped Pieces 5.250" L x 3.000" W (133.35mm x 76.20mm) X 2.125" (53.98mm)
Documents
Technical documentation and resources
No documents available
