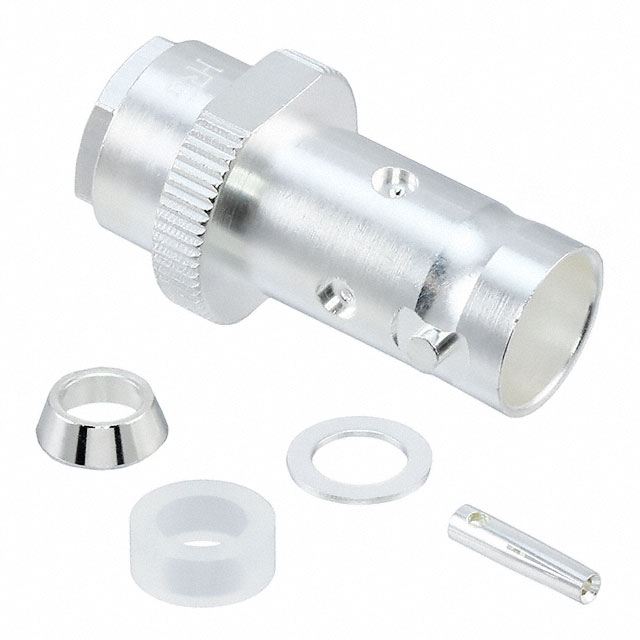

UG-89/U(40)

Obsolete

Hirose Electric USA, Inc.

CONN BNC JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN BNC JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	UG-89/U(40)

Body Finish	Silver
Body Material	Brass
Cable Group [custom]	58, RG-55
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Clamp

Part	Center Contact Material	Impedance	Connector Type	Fastening Type	Mating Cycles	Mounting Type	Connector Style	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Contact Termination	Housing Color	Body Material	Body Finish	Shield Termination	Frequency - Max [Max]	Dielectric Material	Cable Group [custom]
Hirose Electric USA, Inc. UG-89/U(40)	Beryllium Copper	50 Ohms	Female Socket Jack	Bayonet Lock	1000	Free Hanging (In-Line)	BNC	Silver	-30 ░C	60 °C	1	Solder	Silver	Brass	Silver	Clamp	4 GHz	Polytetrafluoroethylene (PTFE)	58 RG-55
Hirose Electric USA, Inc. UG-89/U(43)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
