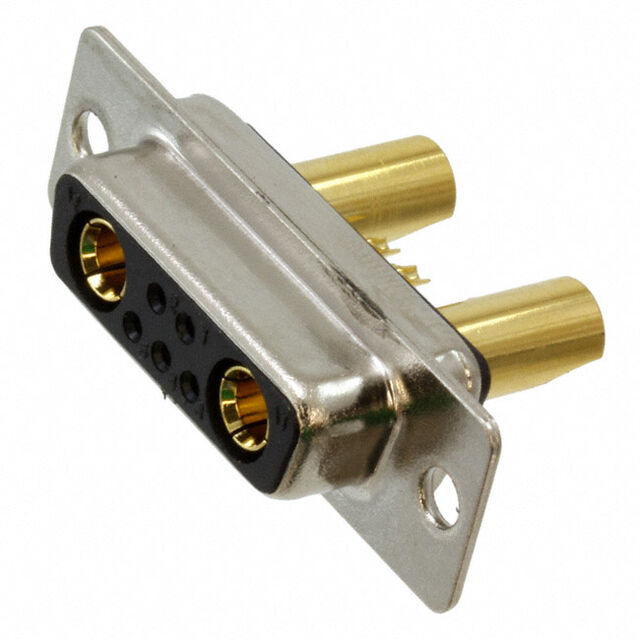

680S7W2203L401
ActiveCOMBINATION LAYOUT D SUB CONNECTOR, 40 AMP, IP68, SEAL-D 680S SERIES, DA-7W2, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
680S7W2203L401
ActiveCOMBINATION LAYOUT D SUB CONNECTOR, 40 AMP, IP68, SEAL-D 680S SERIES, DA-7W2, RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 680S7W2203L401 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions [custom] | 7 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
680S7W2 Series
The SEAL-D 680S series POWER-D solder-cup version D-sub Connectors with machined copper alloy, full gold flash signal and power contacts with glass-filled thermoplastic insulator and nickel-plated, steel shell. It is available in 11 industry standard sizes/positions are 3W3, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3, 13W6, 17W2, 21W1 and 21WA4. Unique sealing method maintains standard D-sub profile allowing for drop in replacement of current POWER-D connectors.
