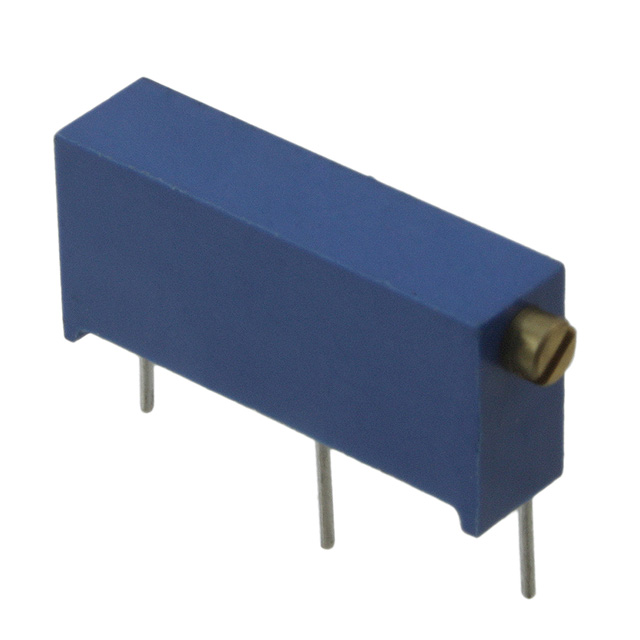

3009P-1-201LF

Active

Bourns Inc.

±10% ±100PPM/℃ 750MW 200Ω PLUGIN POTENTIOMETERS, VARIABLE RESISTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3009P-1-201LF

Active

Bourns Inc.

±10% ±100PPM/℃ 750MW 200Ω PLUGIN POTENTIOMETERS, VARIABLE RESISTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3009P-1-201LF

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	15
Power (Watts)	0.75 W
Power (Watts)	0.75 W
Resistance	200 Ohms
Resistive Material	Cermet
Size / Dimension [x]	8.98 mm
Size / Dimension [x]	0.354 "
Size / Dimension [y]	0.19 in
Size / Dimension [y]	4.83 mm
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

3009P Series

Part	Power (Watts)	Power (Watts)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Resistive Material	Termination Style	Resistance	Tolerance	Temperature Coefficient	Adjustment Type	Number of Turns
Bourns Inc. 3009P-1-200	0.75 W	0.75 W	Through Hole	8.98 mm	0.19 in	0.354 "	4.83 mm	Cermet	PC Pins	20 Ohms	10 %	100 ppm/°C	Side Adjustment	15
Bourns Inc. 3009P-1-204	0.75 W	0.75 W	Through Hole	8.98 mm	0.19 in	0.354 "	4.83 mm	Cermet	PC Pins	200000 Ohms	10 %	100 ppm/°C	Side Adjustment	15
Bourns Inc. 3009P-1-104	0.75 W	0.75 W	Through Hole	8.98 mm	0.19 in	0.354 "	4.83 mm	Cermet	PC Pins	100 kOhms	10 %	100 ppm/°C	Side Adjustment	15
Bourns Inc. 3009P-1-204LF	0.75 W	0.75 W	Through Hole	8.98 mm	0.19 in	0.354 "	4.83 mm	Cermet	PC Pins	200000 Ohms	10 %	100 ppm/°C	Side Adjustment	15
Bourns Inc. 3009P-1-501	0.75 W	0.75 W	Through Hole	8.98 mm	0.19 in	0.354 "	4.83 mm	Cermet	PC Pins	500 Ohms	10 %	100 ppm/°C	Side Adjustment	15
Bourns Inc. 3009P-1-503	0.75 W	0.75 W	Through Hole	8.98 mm	0.19 in	0.354 "	4.83 mm	Cermet	PC Pins	50 kOhms	10 %	100 ppm/°C	Side Adjustment	15
Bourns Inc. 3009P-1-203ZLF	0.75 W	0.75 W	Panel Mount Through Hole	8.98 mm	0.19 in	0.354 "	4.83 mm	Cermet	PC Pins	20 kOhms	10 %	100 ppm/°C	Side Adjustment	15
Bourns Inc. 3009P-1-201LF	0.75 W	0.75 W	Through Hole	8.98 mm	0.19 in	0.354 "	4.83 mm	Cermet	PC Pins	200 Ohms	10 %	100 ppm/°C	Side Adjustment	15
Bourns Inc. 3009P-1-254	0.75 W	0.75 W	Through Hole	8.98 mm	0.19 in	0.354 "	4.83 mm	Cermet	PC Pins	250 kOhms	10 %	100 ppm/°C	Side Adjustment	15
Bourns Inc. 3009P-1-105	0.75 W	0.75 W	Through Hole	8.98 mm	0.19 in	0.354 "	4.83 mm	Cermet	PC Pins	1 MOhms	10 %	100 ppm/°C	Side Adjustment	15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.32
		10	$ 2.04
		25	$ 1.83
		50	$ 1.76
		100	$ 1.69
		300	$ 1.62
		500	$ 1.34
		1000	$ 1.27
		5000	$ 1.24
LCSC	Piece	1	$ 2.26
		200	$ 0.90
		500	$ 0.87
		1000	$ 0.86

Description

General part information

3009P Series

200 Ohms 0.75W, 3/4W PC Pins Through Hole Trimmer Potentiometer Cermet 15.0 Turn Side Adjustment
