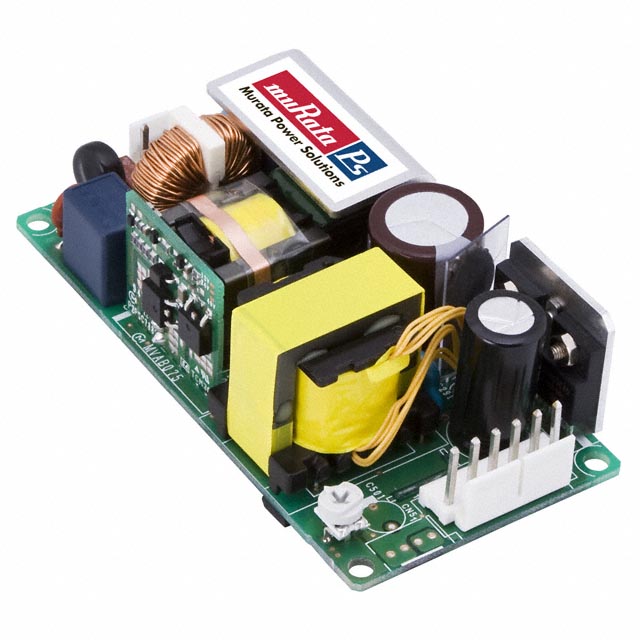

MVAB120-24

Obsolete

Murata Power Solutions Inc.

AC/DC CONVERTER 24V 75W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

AC/DC CONVERTER 24V 75W

Technical Specifications

Parameters and characteristics for this part

Specification	MVAB120-24

Applications	ITE (Commercial)
Approval Agency	cURus, CE, CB, DEMKO
Current - Output 1	5 A
Efficiency	90 %
Features	PFC, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	75 W, 120 W
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	28.5 mm
Size / Dimension [z]	1.12 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Approval Agency	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Current - Output 1	Mounting Type	Power (Watts)	Features	Voltage - Isolation	Applications	Type	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. MVAB120-28-01	CB CE cURus DEMKO	90 %	90 VAC	264 VAC	1	-10 °C	50 °C	101.6 mm	4 in	1.41 in	35.8 mm	50.8 mm	2 in	4.29 A	Chassis Mount	75 W 120 W	PFC Universal Input	3000 V	Medical	Open Frame	28 V
Murata Power Solutions Inc. MVAB120-24	CB CE cURus DEMKO	90 %	90 VAC	264 VAC	1	-10 °C	50 °C	101.6 mm	4 in	1.12 in	28.5 mm	50.8 mm	2 in	5 A	Chassis Mount	75 W 120 W	PFC Universal Input	3000 V	ITE (Commercial)	Open Frame	24 V
Murata Power Solutions Inc. MVAB120-48	CB CE cURus DEMKO	91 %	90 VAC	264 VAC	1	-10 °C	50 °C	101.6 mm	4 in	1.12 in	28.5 mm	50.8 mm	2 in	2.5 A	Chassis Mount	75 W 120 W	PFC Universal Input	3000 V	ITE (Commercial)	Open Frame	48 V
Murata Power Solutions Inc. MVAB120-12-01	CB CE cURus DEMKO	88 %	90 VAC	264 VAC	1	-10 °C	50 °C	101.6 mm	4 in	1.41 in	35.8 mm	50.8 mm	2 in	10 A	Chassis Mount	75 W 120 W	PFC Universal Input	3000 V	Medical	Open Frame	12 V
Murata Power Solutions Inc. MVAB120-28	CB CE cURus DEMKO	90 %	90 VAC	264 VAC	1	-10 °C	50 °C	101.6 mm	4 in	1.35 "			2 in	4.29 A	Chassis Mount	75 W 120 W	PFC Universal Input	3000 V	ITE (Commercial)	Open Frame	28 V	50.8 mm	34.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
