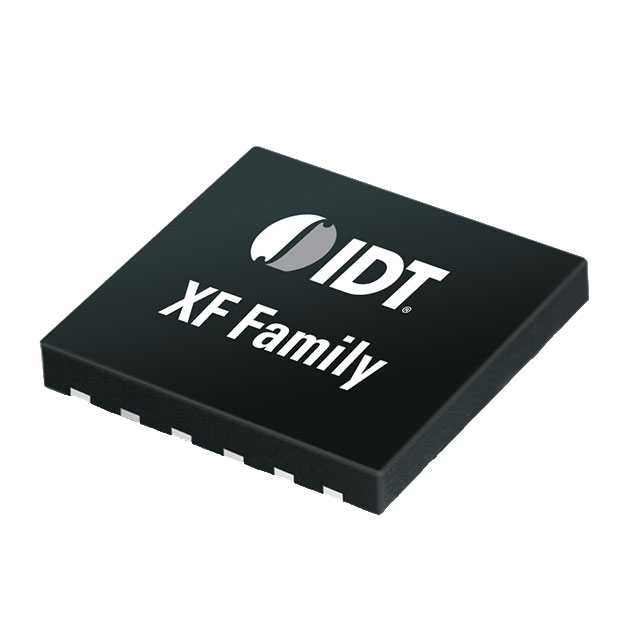

XFP236156.250000I - MFG_XF-pkg

XFP236156.250000I

Active
Renesas Electronics Corporation

PLL OSCILLATOR, 156.25MHZ/-40 TO 85DEG C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
XFP236156.250000I - MFG_XF-pkg

XFP236156.250000I

Active
Renesas Electronics Corporation

PLL OSCILLATOR, 156.25MHZ/-40 TO 85DEG C

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationXFP236156.250000I
Base ResonatorCrystal
Frequency156.25 MHz
Frequency Stability25 ppm
FunctionEnable/Disable
Mounting TypeSurface Mount
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
OutputLVPECL
Package / Case12-SMD, No Lead, Exposed Pad
Size / Dimension [x]0.098 "
Size / Dimension [x]2.5 mm
Size / Dimension [y]2 mm
Size / Dimension [y]0.079 in
TypeXO (Standard)
Voltage - Supply3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyStrip 1$ 7.21
NewarkEach (Supplied on Cut Tape) 1$ 9.72
10$ 9.21
25$ 8.76
50$ 8.33

Description

General part information

XFP236 Series

156.25 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 12-SMD, No Lead, Exposed Pad
