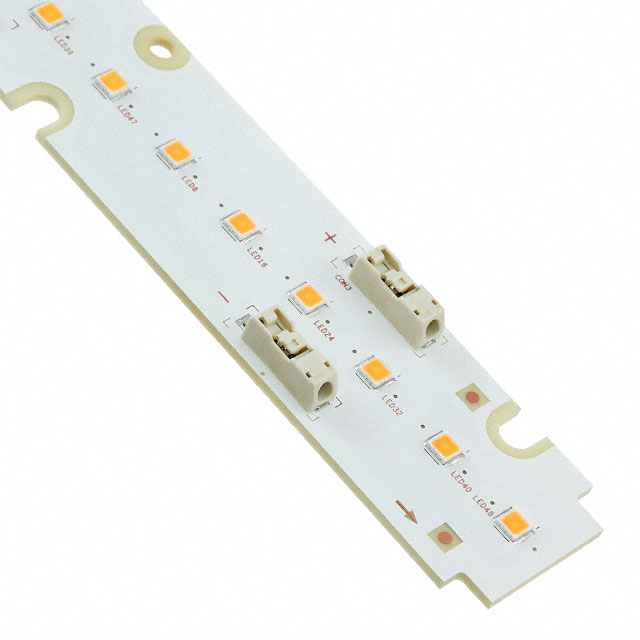

SL-B8V3N80L1WW

Obsolete

Samsung Semiconductor, Inc.

LED MOD INFLUXL04 LNR STR 3000K

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

LED MOD INFLUXL04 LNR STR 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	SL-B8V3N80L1WW

Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	1.38 A
Current - Test	1.38 A
Features	With Connector
Height [z]	5.9 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	126 lm/W
Luminous Flux @ Current/Temperature	4190 lm
Size / Dimension [x]	559.5 mm
Size / Dimension [y]	23.7 mm
Temperature - Test	65 °C
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	24.1 V

Part	Lens Type	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Configuration	Viewing Angle	CRI (Color Rendering Index)	Type	Height [z]	Lumens/Watt @ Current - Test	Temperature - Test	Color	Features	Current - Test	Luminous Flux @ Current/Temperature
Samsung Semiconductor, Inc. SL-B8V3N80LAWW	Flat	560 mm	24 mm	22.4 V	2.2 A	Linear Light Strip	118 °	80	LED Module	5.2 mm	176 lm/W	55 °C	Warm White
Samsung Semiconductor, Inc. SL-B8V3N80L1WW	Flat	559.5 mm	23.7 mm	24.1 V	1.38 A	Linear Light Strip	115 °	80	LED Module	5.9 mm	126 lm/W	65 °C	Warm White	With Connector	1.38 A	4190 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module inFlux_L04 White, Warm Linear Light Strip
