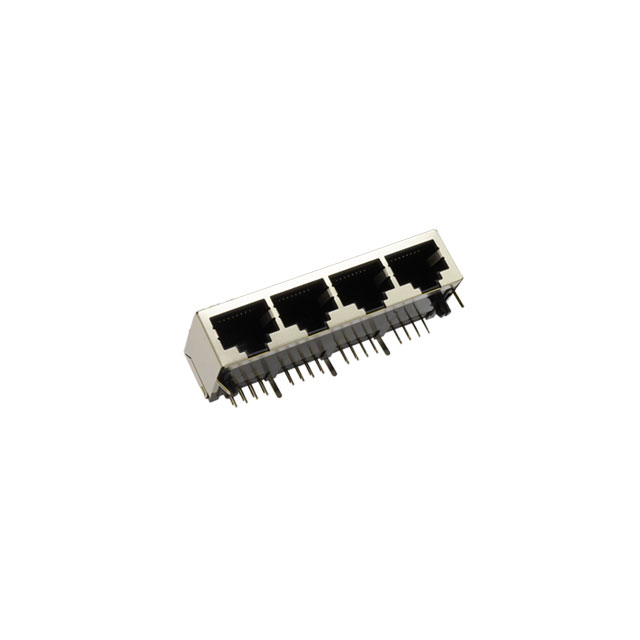

MTJG-4-88GX1-FSB

Active

Adam Tech

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Active

Adam Tech

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	MTJG-4-88GX1-FSB

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Features	Board Lock, Solder Retention
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	4
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

Part	Number of Positions/Contacts	Number of Ports	Housing Material	Termination	Shielding	Mounting Type	Features	Contact Finish Thickness	Contact Finish	Contact Material	LED Color	Orientation	Tab Direction	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type
Adam Tech MTJG-4-88ARX1-FSW-P114C-HT-A	8p8c (RJ45 Ethernet)	4	Thermoplastic	Solder	Shielded	Through Hole	Board Lock Solder Retention	Flash	Gold	Phosphor Bronze	Does Not Contain LED	90 °	Up	1	-40 °C	70 °C	Jack
Adam Tech MTJG-4-88GX1-FSB	8p8c (RJ45 Ethernet)	4	Polybutylene Terephthalate (PBT)	Solder	Shielded	Through Hole	Board Lock Solder Retention	Flash	Gold	Phosphor Bronze	Does Not Contain LED	90 °	Down	1	-40 °C	85 °C	Jack
