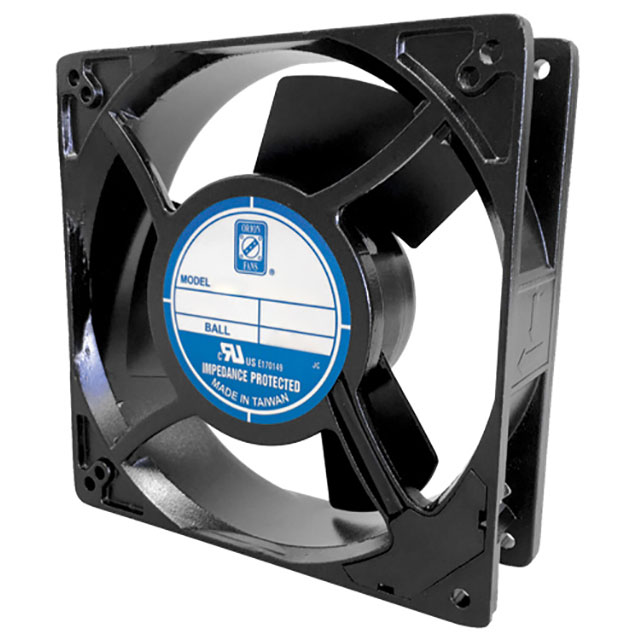

OA119AP-22-1TB1855

Active

Orion Fans

AC FAN, 128 CFM, 2950 RPM, 26 W, 230 VAC, 48 DB, 127 MM X 38.5 MM, TERMINALS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMetal Fans Catalog One Page Summary EN +2

OA119AP-22-1TB1855

Active

Orion Fans

AC FAN, 128 CFM, 2950 RPM, 26 W, 230 VAC, 48 DB, 127 MM X 38.5 MM, TERMINALS

Deep-Dive with AI

DocumentsMetal Fans Catalog One Page Summary EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA119AP-22-1TB1855

Air Flow	3.58 mł/min
Air Flow	128 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Metal
Material - Frame	Aluminum
Noise	48 dB
Power (Watts)	26 W
RPM	2950 RPM
Size / Dimension [x]	127 mm
Size / Dimension [y]	127 mm
Static Pressure	72.2 Pa
Static Pressure	0.29 in H2O
Termination	2 Terminals
Voltage - Rated	230 VAC
Weight	1.4 lbs
Weight	635 g
Width [y]	38.5 mm

OA119 Series

Part	Static Pressure	Static Pressure	Material - Frame	Voltage - Rated	Noise	Ingress Protection	Power (Watts)	Termination	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Air Flow	Air Flow	Width [y]	Material - Blade	Approval Agency	Bearing Type	RPM	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]
Orion Fans OA119AP-11-1WB1855	72.2 Pa	0.29 in H2O	Aluminum	115 VAC	48 dB	IP55 - Dust Protected Water Resistant	26 W	2 Wire Leads	50000 Hrs	127 mm	127 mm	Tubeaxial	128 CFM	3.58 mł/min	38.5 mm	Metal	cURus TUV	Ball	2950 RPM	1.4 lbs	635 g	120 VAC	100 VAC
Orion Fans OA119AP-22-1TB	59.8 Pa	0.24 in H2O	Aluminum	230 VAC	46 dB(A)		14 Watts	2 Terminals	60000 Hrs	127 mm	127 mm	Tubeaxial	130 CFM	3.64 m³/min	38.5 mm	Polybutylene Terephthalate (PBT)	cURus TUV	Ball	2750 RPM	1.3 lbs	589.7 g	260 VAC	160 VAC	80 C	80 °C	-20 °C	-20 C
Orion Fans OA119AP-22-1TB1855	72.2 Pa	0.29 in H2O	Aluminum	230 VAC	48 dB	IP55 - Dust Protected Water Resistant	26 W	2 Terminals	50000 Hrs	127 mm	127 mm	Tubeaxial	128 CFM	3.58 mł/min	38.5 mm	Metal	cURus TUV	Ball	2950 RPM	1.4 lbs	635 g
Orion Fans OA119AP-11-1TB	59.8 Pa	0.24 in H2O	Aluminum	115 VAC	46 dB(A)		14 Watts	2 Terminals	60000 Hrs	127 mm	127 mm	Tubeaxial	130 CFM	3.64 m³/min	38.5 mm	Polybutylene Terephthalate (PBT)	cURus TUV	Ball	2750 RPM	1.3 lbs	589.7 g	130 VAC	80 VAC	80 C	80 °C	-20 °C	-20 C
Orion Fans OA119AP-11-1WB	59.8 Pa	0.24 in H2O	Aluminum	115 VAC	46 dB(A)		14 Watts	2 Wire Leads	60000 Hrs	127 mm	127 mm	Tubeaxial	130 CFM	3.64 m³/min	38.5 mm	Polybutylene Terephthalate (PBT)	cURus TUV	Ball	2750 RPM	1.3 lbs	589.7 g	130 VAC	80 VAC	80 C	80 °C	-20 °C	-20 C
Orion Fans OA119AP-22-1WB	59.8 Pa	0.24 in H2O	Aluminum	230 VAC	46 dB(A)		14 Watts	2 Wire Leads	60000 Hrs	127 mm	127 mm	Tubeaxial	130 CFM	3.64 m³/min	38.5 mm	Polybutylene Terephthalate (PBT)	cURus TUV	Ball	2750 RPM	1.3 lbs	589.7 g	260 VAC	160 VAC	80 C	80 °C	-20 °C	-20 C
Orion Fans OA119AP-22-1WB1855	72.2 Pa	0.29 in H2O	Aluminum	230 VAC	48 dB	IP55 - Dust Protected Water Resistant	26 W	2 Wire Leads	50000 Hrs	127 mm	127 mm	Tubeaxial	128 CFM	3.58 mł/min	38.5 mm	Metal	cURus TUV	Ball	2950 RPM	1.4 lbs	635 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 48.02
		10	$ 43.85
		40	$ 42.19
		80	$ 39.41
		120	$ 36.36
Newark	Each	1	$ 54.96
		1000	$ 50.38

Description

General part information

OA119 Series

Fan Tubeaxial 230VAC Square - 127mm L x 127mm H Ball 128.0 CFM (3.58m³/min) 2 Terminals
