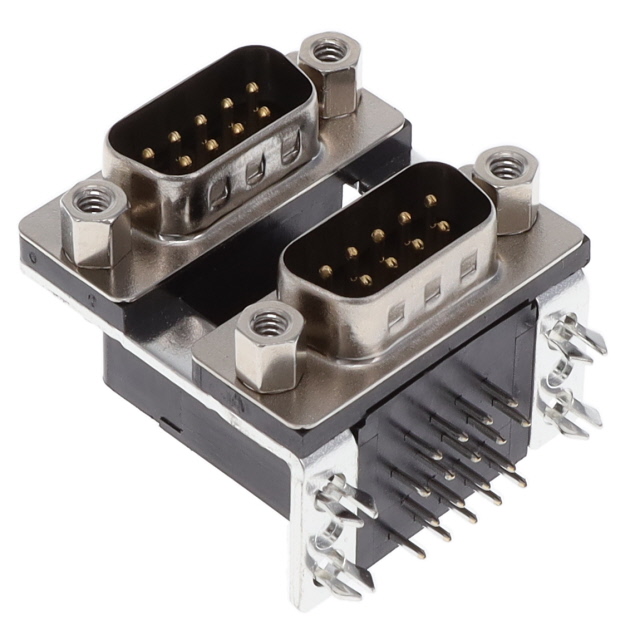

K42X-E9P/P-A4NJ
ActiveKycon, Inc.
CONN D-SUB PLUG 9POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
K42X-E9P/P-A4NJ
ActiveKycon, Inc.
CONN D-SUB PLUG 9POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K42X-E9P/P-A4NJ |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 1.2 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents, Mounting Brackets, Board Lock |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 1 (DE, E) |
| Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.70 | |
| 10 | $ 9.95 | |||
| 27 | $ 9.27 | |||
| 54 | $ 8.83 | |||
| 108 | $ 8.41 | |||
| 270 | $ 7.88 | |||
| 513 | $ 7.53 | |||
| 1026 | $ 7.17 | |||
Description
General part information
K42X-E9P Series
9, 9 Position D-Sub - Stacked Plug, Male Pins Connector
