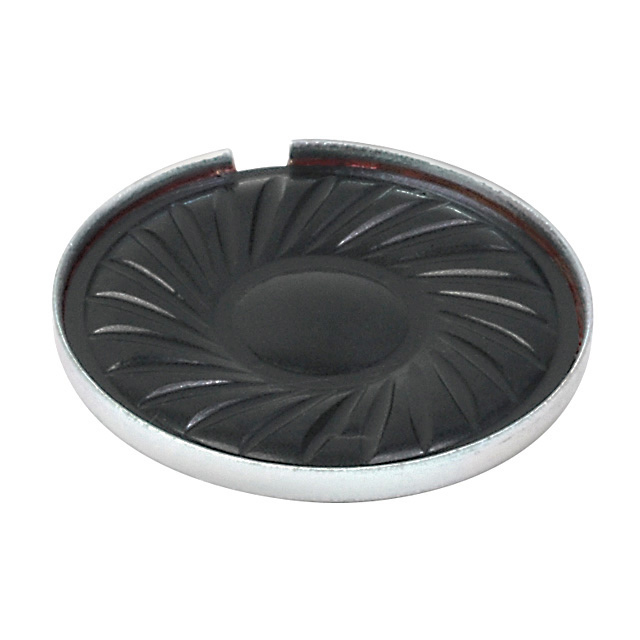

CDMG16008-03

Active

CUI Devices

SPEAKERS LOW PROFILE NEODYMIUM IRON BORON 600HZ 0.5W 82DBA 8OHM ROUND SOLDER LUG

Search across all available documentation for this part.

Active

CUI Devices

SPEAKERS LOW PROFILE NEODYMIUM IRON BORON 600HZ 0.5W 82DBA 8OHM ROUND SOLDER LUG

Technical Specifications

Parameters and characteristics for this part

Specification	CDMG16008-03

Efficiency - dBA	69 dBA
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	600 Hz
Frequency Range [Max]	20 kHz
Frequency Range [Min]	600 Hz
Height - Seated (Max) [Max] [z]	0.1 in
Height - Seated (Max) [Max] [z]	2.55 mm
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	500 mW
Power - Rated	300 mW
Shape	Round
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Technology	Magnetic
Termination	Solder Pads
Type	General Purpose

Part	Frequency - Self Resonant	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Impedance	Material - Cone	Frequency Range [Min]	Frequency Range [Max]	Power - Rated	Termination	Power - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Efficiency - Type	Shape	Material - Magnet	Efficiency - dBA	Port Location	Technology
CUI Devices CDMG16008-03	600 Hz	General Purpose	0.63 in	16 mm	8 Ohms	Polyester Polyethylene Terephthalate (PET)	600 Hz	20 kHz	300 mW	Solder Pads	500 mW	0.1 in	2.55 mm	Sound Pressure Level (SPL)	Round	Nd-Fe-B	69 dBA	Top	Magnetic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms General Purpose Speaker 300 mW 600 Hz ~ 20 kHz Top Round
