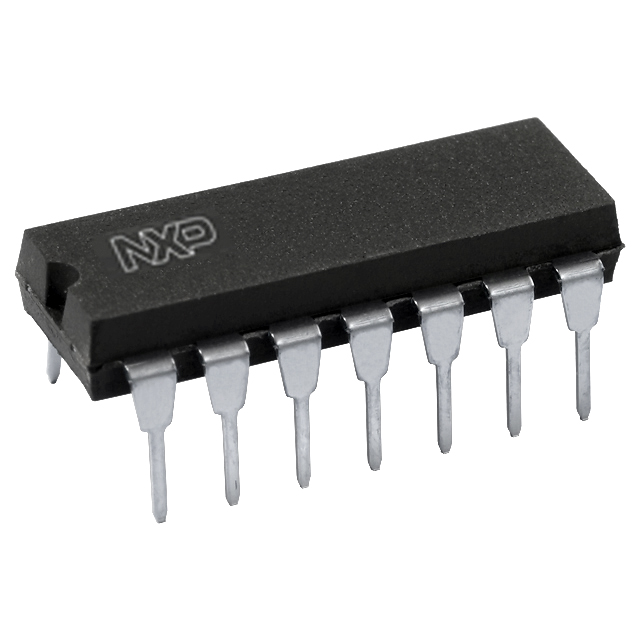

74ABT20N,112

Obsolete

Freescale Semiconductor - NXP

IC GATE NAND 2CH 4-INP 14DIP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC GATE NAND 2CH 4-INP 14DIP

Technical Specifications

Parameters and characteristics for this part

Specification	74ABT20N,112

Current - Output High, Low [custom]	15 mA
Current - Output High, Low [custom]	20 mA
Current - Quiescent (Max) [Max]	50 µA
Input Logic Level - Low	0.8 V
Logic Type	NAND Gate
Max Propagation Delay @ V, Max CL	3.9 ns
Mounting Type	Through Hole
Number of Circuits	2
Number of Inputs	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP
Package / Case [x]	0.3 "
Package / Case [y]	7.62 mm
Supplier Device Package	14-DIP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Logic Type	Input Logic Level - Low	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Package / Case	Package / Case	Number of Inputs	Max Propagation Delay @ V, Max CL	Current - Quiescent (Max) [Max]	Mounting Type	Package / Case [y]	Package / Case [x]
Freescale Semiconductor - NXP 74ABT20DB,112	4.5 V	5.5 V	14-SSOP	85 °C	-40 °C	2	NAND Gate	0.8 V	15 mA	20 mA	5.3 mm	14-SSOP	0.209 "	4	3.9 ns	50 µA	Surface Mount
Freescale Semiconductor - NXP 74ABT20N,112	4.5 V	5.5 V	14-DIP	85 °C	-40 °C	2	NAND Gate	0.8 V	15 mA	20 mA		14-DIP		4	3.9 ns	50 µA	Through Hole	7.62 mm	0.3 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

NAND Gate IC 2 Channel 14-DIP
