FR02FC16P-R

Active

NKK Switches

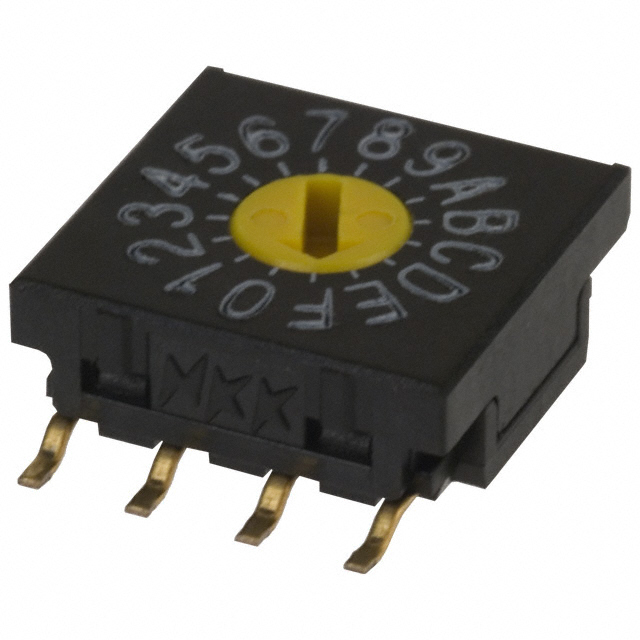

ROTARY SWITCH, 16 POSITION, 1 POLE

Search across all available documentation for this part.

Active

NKK Switches

ROTARY SWITCH, 16 POSITION, 1 POLE

Technical Specifications

Parameters and characteristics for this part

Specification	FR02FC16P-R

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	Hexadecimal Complement
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board	0.154 in
Height Above Board	3.9 mm
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Surface Mount
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	5 V
Washable	False

Part	Circuit	Actuator Level	Body Material	Mechanical Life	Length	Length	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Contact Material	Current Rating (Amps)	Washable	Termination Style	Pitch [x]	Pitch	Pitch [x]	Number of Positions	Actuator Type	Mounting Type	Voltage Rating	Height Above Board	Height Above Board
NKK Switches FR02FC16P-R	Hexadecimal Complement	Flush Recessed	Polyamide (PA) Nylon Glass Filled	10000 Steps	10 mm	0.394 in	Gold	-25 °C	85 °C	10000 Cycles	Copper Alloy	100 mA		Gull Wing	0.1 in	Full	2.54 mm	16	Rotary for Tool	Surface Mount	5 V	0.154 in	3.9 mm
NKK Switches FR02FC16P	Hexadecimal Complement	Flush Recessed	Polyamide (PA) Nylon Glass Filled	10000 Steps	10 mm	0.394 in	Gold	-25 °C	85 °C	10000 Cycles	Copper Alloy	100 mA		Gull Wing	0.1 in	Full	2.54 mm	16	Rotary for Tool	Surface Mount	5 V	0.154 in	3.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch Hexadecimal Complement 16 Position Surface Mount Rotary for Tool Actuator 100mA 5VDC
