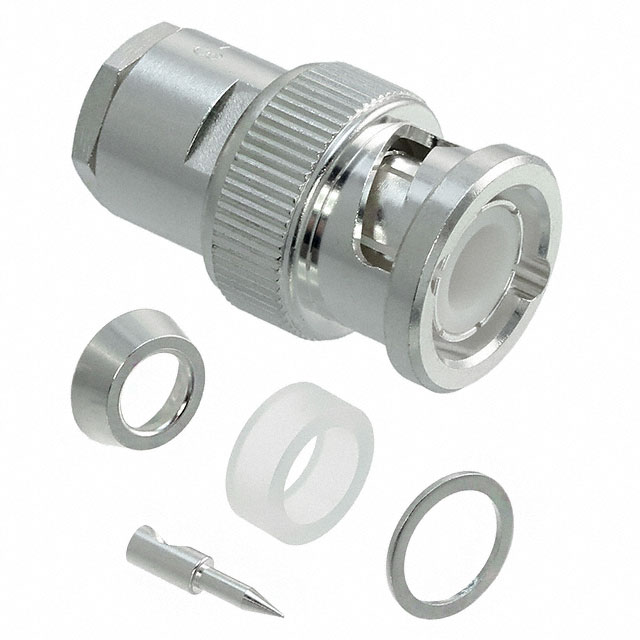

BNC-P-3(40)

Obsolete

Hirose Electric USA, Inc.

CONN BNC PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN BNC PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	BNC-P-3(40)

Body Finish	Silver
Body Material	Brass
Cable Group	3C-2V
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Clamp

Part	Impedance	Dielectric Material	Mounting Type	Center Contact Material	Number of Ports	Connector Style	Cable Group	Housing Color	Frequency - Max [Max]	Center Contact Plating	Connector Type	Shield Termination	Fastening Type	Body Material	Body Finish	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles
Hirose Electric USA, Inc. BNC-P-3DV-SA(43)
Hirose Electric USA, Inc. BNC-P-3(40)	50 Ohms	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Brass	1	BNC	3C-2V	Silver	4 GHz	Silver	Male Pin Plug	Clamp	Bayonet Lock	Brass	Silver	Solder	-30 ░C	60 °C	500
Hirose Electric USA, Inc. BNC-P-3DV-SA(40)	50 Ohms	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Brass	1	BNC	3C-2V 3D-2V	Silver	500 MHz	Silver	Male Pin Plug	Clamp	Bayonet Lock	Brass	Silver	Solder	-30 ░C	60 °C	1000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
