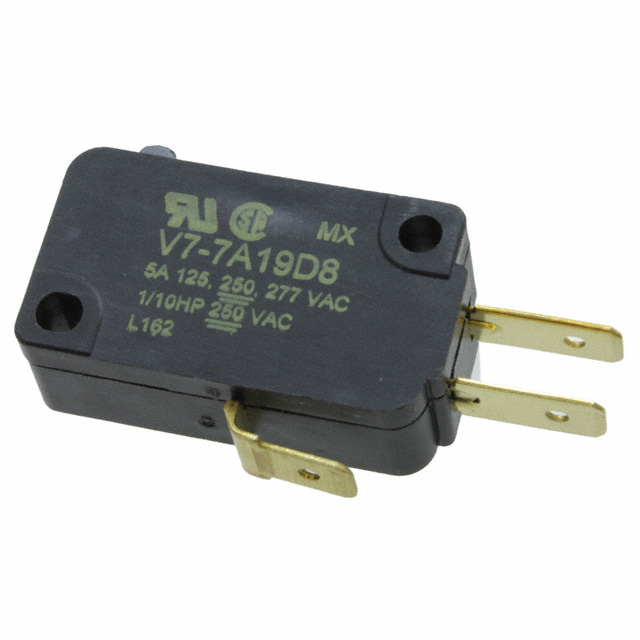

V7-7A19D8

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Operating Force	Mechanical Life	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Termination Style	Switch Function	Mounting Type	Current Rating (Amps)	Overtravel	Overtravel	Operating Position	Operating Position	Electrical Life	Differential Travel	Differential Travel	Release Force	Pretravel	Pretravel
Honeywell Sensing and Productivity Solutions V7-7A17D8-374	125 V	273 gf	10000000 Cycles	Formed Lever	85 °C	-40 °C	SPDT	Quick Connect - 0.187" (4.7mm)	On-Mom	Chassis Mount	5 A
Honeywell Sensing and Productivity Solutions V7-7A19D8	125 V	227 gf	10000000 Cycles	Round (Pin Plunger)	85 °C	-40 °C	SPDT	Quick Connect - 0.187" (4.7mm)	On-Mom	Chassis Mount	5 A	1.27 mm	0.05 in	0.579 in	14.7 mm	100000 Cycles	0.015 in	0.38 mm	57 gf	0.047 in	1.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
