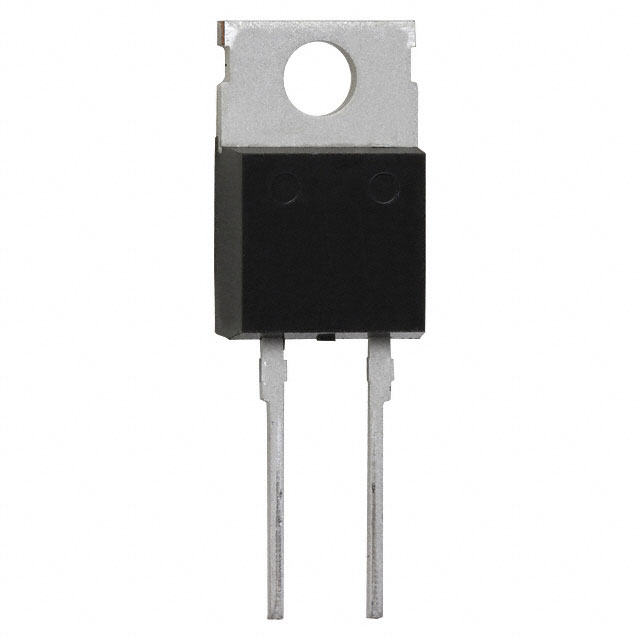

BYC20D-600PQ

Active

WeEn Semiconductors Co., Ltd

DIODE GEN PURP 600V 20A TO220AC

Search across all available documentation for this part.

Active

WeEn Semiconductors Co., Ltd

DIODE GEN PURP 600V 20A TO220AC

Technical Specifications

Parameters and characteristics for this part

Specification	BYC20D-600PQ

Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-220-2
Reverse Recovery Time (trr)	20 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AC
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	2.9 V

Part	Speed	Operating Temperature - Junction	Supplier Device Package	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Mounting Type	Operating Temperature - Junction [Max]
WeEn Semiconductors Co., Ltd BYC20X-600,127	200 mA 500 ns	150 °C	TO-220FP	TO-220-2 Full Pack Isolated Tab	500 V	Standard	2.9 V	200 µA	55 ns	Through Hole
WeEn Semiconductors Co., Ltd BYC20D-600PQ	200 mA 500 ns		TO-220AC	TO-220-2	600 V	Standard	2.9 V	10 µA	20 ns	Through Hole	175 °C
WeEn Semiconductors Co., Ltd BYC20DX-600PQ	200 mA 500 ns		TO-220F	TO-220-2 Full Pack Isolated Tab	600 V	Standard	2.9 V	10 µA	20 ns	Through Hole	175 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6000	$ 0.74

General part information

Diode 600 V 20A Through Hole TO-220AC

Technical documentation and resources

No documents available
