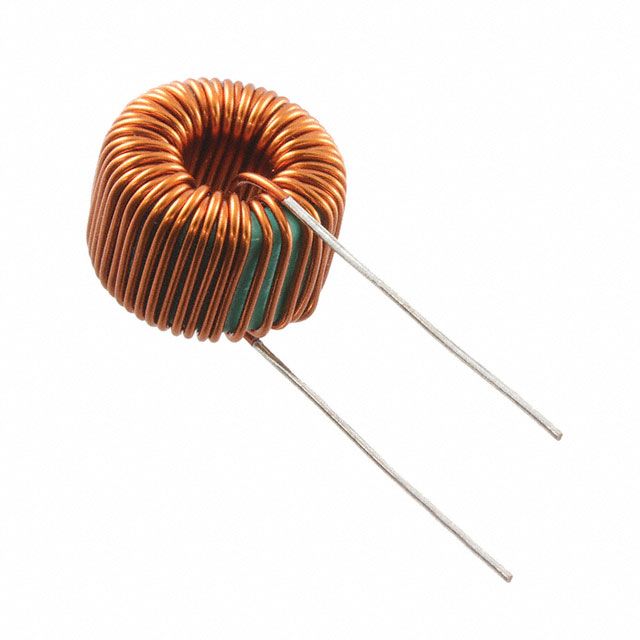

SN8D-500 - SN8D-500

SN8D-500

Active
KEMET

COMMON MODE CHOKE, 125UH, 2A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetSN8D-500
SN8D-500 - SN8D-500

SN8D-500

Active
KEMET

COMMON MODE CHOKE, 125UH, 2A

Deep-Dive with AI

DocumentsDatasheetSN8D-500

Technical Specifications

Parameters and characteristics for this part

SpecificationSN8D-500
Current Rating (Max) [Max]2 A
DC Resistance (DCR) (Max) [Max]100 mOhm
Filter TypePower Line
Height (Max) [Max]0.728 in
Height (Max) [Max]18.5 mm
Inductance @ Frequency125 µH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-25 °C
Package / CaseVertical, No Base
Package / Case2 Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.67
10$ 2.19
25$ 2.03
50$ 1.91
100$ 1.80
250$ 1.67
500$ 1.57
1000$ 1.49
2500$ 1.40
NewarkEach 1$ 3.20
10$ 2.09
25$ 2.04
50$ 1.98
100$ 1.92
500$ 1.60
1000$ 1.49
2500$ 1.45

Description

General part information

SN8D Series

125 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 2A DCR 100mOhm

Documents

Technical documentation and resources

Datasheet

Datasheet

SN8D-500
