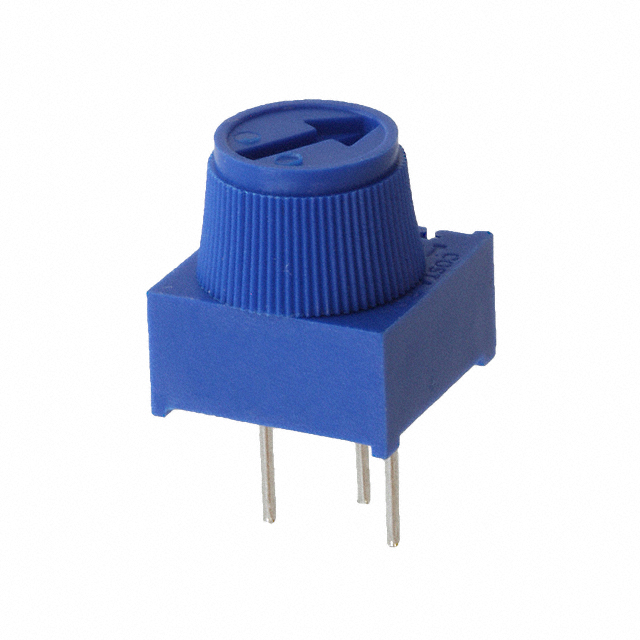

3386P-1-502TLF

Active

Bourns Inc.

TRIMMER, SINGLE TURN, CERMET, TOP ADJUST, 5 KOHM, THROUGH HOLE, 1 TURNS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

3386P-1-502TLF

Active

Bourns Inc.

TRIMMER, SINGLE TURN, CERMET, TOP ADJUST, 5 KOHM, THROUGH HOLE, 1 TURNS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3386P-1-502TLF

Adjustment Type	Top Finger Adjustment
Mounting Type	Through Hole
Number of Turns	1
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	5 kOhms
Resistive Material	Cermet
Size / Dimension [x]	0.375 in
Size / Dimension [x]	9.53 mm
Size / Dimension [y]	0.375 in
Size / Dimension [y]	9.53 mm
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

3386P Series

Part	Adjustment Type	Resistive Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Power (Watts)	Temperature Coefficient	Tolerance	Mounting Type	Resistance	Termination Style	Number of Turns
Bourns Inc. 3386P-DF6-201	Top Adjustment	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	0.5 W	0.5 W	100 ppm/°C	10 %	Through Hole	200 Ohms	PC Pins	1
Bourns Inc. 3386P-1-221	Top Adjustment	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	0.5 W	0.5 W	100 ppm/°C	10 %	Through Hole	220 Ohms	PC Pins	1
Bourns Inc. 3386P-1-204TLF	Top Finger Adjustment	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	0.5 W	0.5 W	100 ppm/°C	10 %	Through Hole	200000 Ohms	PC Pins	1
Bourns Inc. 3386P-1-251	Top Adjustment	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	0.5 W	0.5 W	100 ppm/°C	10 %	Through Hole	250 Ohms	PC Pins	1
Bourns Inc. 3386P-1-502TLF	Top Finger Adjustment	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	0.5 W	0.5 W	100 ppm/°C	10 %	Through Hole	5 kOhms	PC Pins	1
Bourns Inc. 3386P-DF6-101	Top Adjustment	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	0.5 W	0.5 W	100 ppm/°C	10 %	Through Hole	100 Ohms	PC Pins	1
Bourns Inc. 3386P-1-224LF	Top Adjustment	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	0.5 W	0.5 W	100 ppm/°C	10 %	Through Hole	220 kOhms	PC Pins	1
Bourns Inc. 3386P-1-554LF	Top Adjustment	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	0.5 W	0.5 W	100 ppm/°C	10 %	Through Hole	550 kOhms	PC Pins	1
Bourns Inc. 3386P-1-222LF	Top Adjustment	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	0.5 W	0.5 W	100 ppm/°C	10 %	Through Hole	2200 Ohms	PC Pins	1
Bourns Inc. 3386P-1-104	Top Adjustment	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	0.5 W	0.5 W	100 ppm/°C	10 %	Through Hole	100 kOhms	PC Pins	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.62
		10	$ 2.31
		25	$ 2.07
		50	$ 1.99
		100	$ 1.91
		300	$ 1.83
		500	$ 1.51
		1000	$ 1.43
		5000	$ 1.19
Newark	Each	1	$ 2.18
		10	$ 1.60
		100	$ 1.22
		500	$ 1.10
		1000	$ 1.06
		2500	$ 1.02
		5000	$ 0.95

Description

General part information

3386P Series

5 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Finger Adjustment
