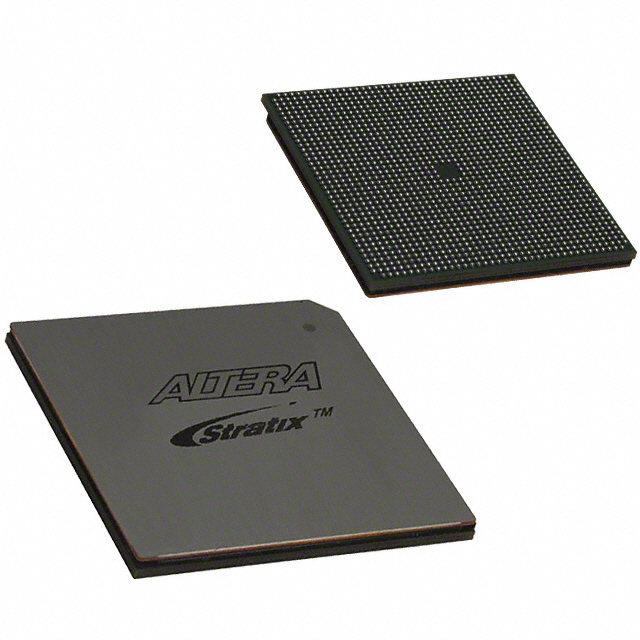

EP2SGX90FF1508C3N

Obsolete

Altera

IC FPGA 650 I/O 1508FBGA

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 650 I/O 1508FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	EP2SGX90FF1508C3N

Mounting Type	Surface Mount
Number of I/O	650
Number of LABs/CLBs	4548
Number of Logic Elements/Cells	90960
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	FCBGA, 1508-BBGA
Supplier Device Package	1508-FBGA, FC (40x40)
Total RAM Bits	4520448 Bits

Part	Operating Temperature [Min]	Operating Temperature [Max]	Total RAM Bits	Number of LABs/CLBs	Mounting Type	Number of Logic Elements/Cells	Package / Case	Supplier Device Package	Number of I/O
Altera EP2SGX90EF1152C3N	0 °C	85 °C	4520448 Bits	4548	Surface Mount	90960	1152-BBGA	1152-FBGA (35x35)	558
Altera EP2SGX90EF1152I4	-40 C	100 °C	4520448 Bits	4548	Surface Mount	90960	1152-BBGA	1152-FBGA (35x35)	558
Altera EP2SGX90FF1508C3N	0 °C	85 °C	4520448 Bits	4548	Surface Mount	90960	1508-BBGA FCBGA	1508-FBGA FC (40x40)	650

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Stratix® II GX Field Programmable Gate Array (FPGA) IC 650 4520448 90960 1508-BBGA, FCBGA
